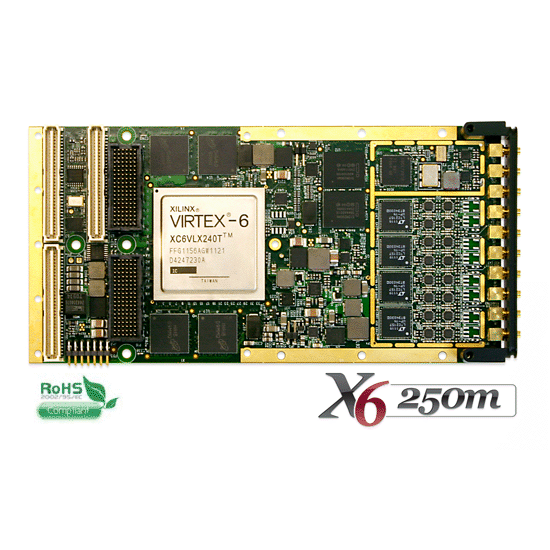

The X6-250M integrates digitizing with signal processing on a PMC/XMC IO module. The module has a powerful Xilinx Virtex 6 FPGA signal processing core, and high performance PCI Express/PCI host interface. Applications include software-defined radio, RADAR receivers, and multi-channel data recorders.
The X6-250M has eight simultaneously sampling A/D channels that sample at rates up to 250 MSPS (14-bit). The A/D have matched input delays and response. The A/D are supported by a programmable sample clock PLL and triggering that support multi-card synchronization for large scale systems.
A Xilinx Virtex6 SX315T (LX240T and SX475T options) with 4 banks of 1GB DRAM provide a very high performance DSP core with over 2000 MACs (SX315T). The close integration of the analog IO, memory and host interface with the FPGA enables real-time signal processing at extremely high rates.
The X6-250M has both XMC and PCI interfaces, supporting PCI Express or older PCI systems. The PCI Express interface provides up to 2 GB/s sustained transfers rates through a x8 PCIe Gen2 interface.
