White Rabbit Switch Low Jitter - A new version of the White Rabbit Switch

White Rabbit Switch Low Jitter - A new version of the White Rabbit Switch
Main features
  • Sub-nanosecond time accuracy
  • 18 SFP 1GbE ports
  • Time and frequency distribution
  • Distance range over 100km in 1-hop
  • Remote monitoring
  • Improved clocking design in HW and FPGA
  • Cleaner and more accurate 1PPS output.
  • Improved clock jitter and phase noise
  • Lower power consumption and better thermic dissipation
  • High reliability and improved MTFB

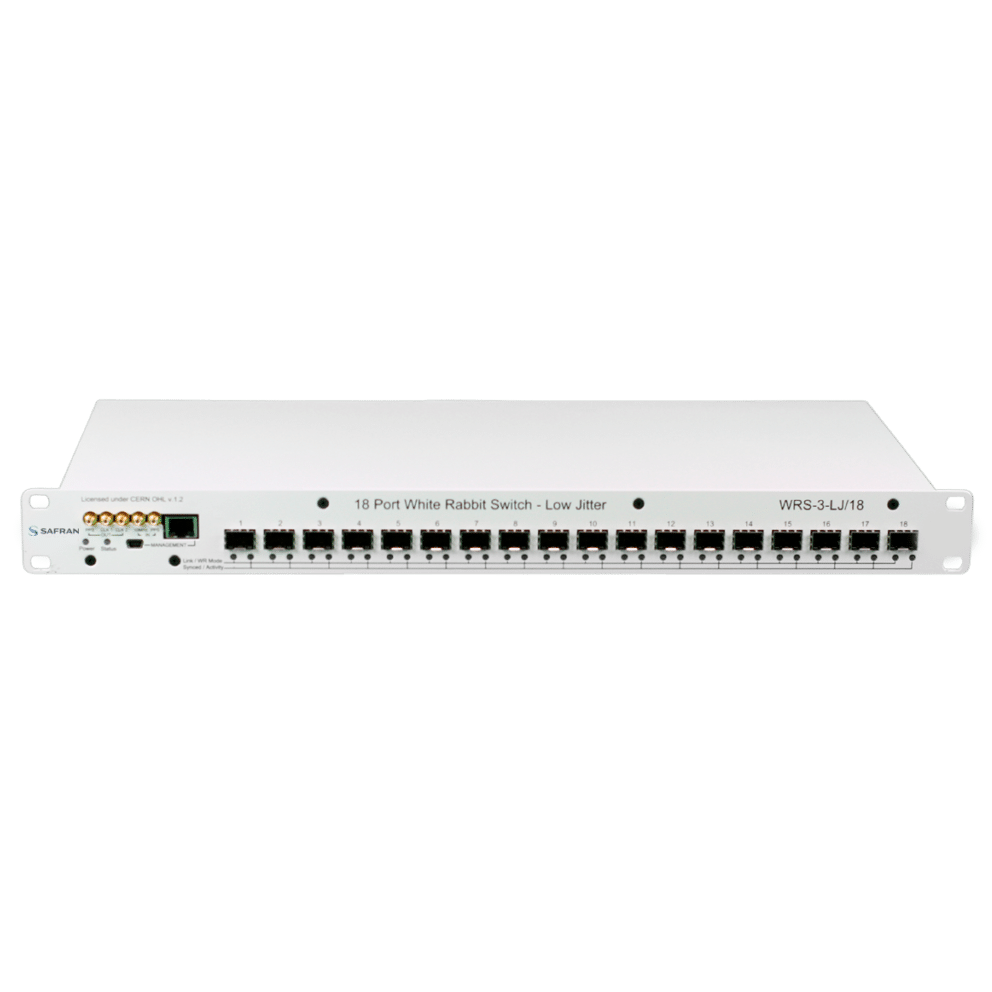

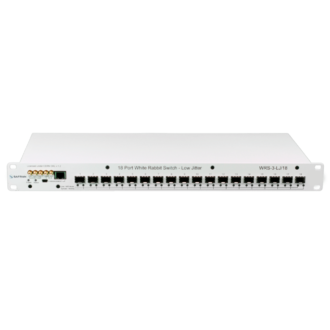

The White Rabbit Switch Low Jitter (WRS-LJ) is an enhanced version of the original White Rabbit Switch, offering several improvements for use in demanding time and frequency distribution applications. It provides sub-nanosecond accuracy for distributing time and frequency to thousands of nodes via standard optical fiber, ensuring low noise and precise timing outputs.

This new version guarantees deterministic delivery and reliable communication. It is already deployed in highly demanding industrial and scientific facilities across more than fourteen countries, where it supports time-critical applications.
