WebDAQ-504: IEPE data logger, internet-enabled, with 4 simultaneous channels, 24-Bit resolution, 51.2 kS/s/ch max sample rate

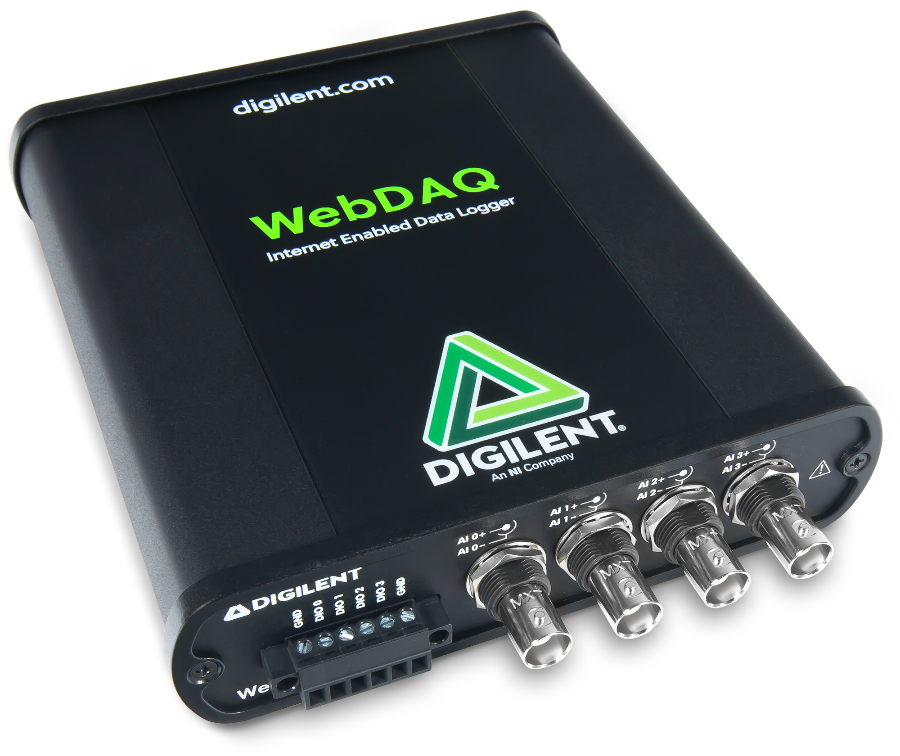

The WebDAQ-504 is a stand-alone, acoustic and vibration data logger with IEPE channels designed for remote monitoring and control. The WebDAQ-504 has 4 synchronous channels, IEPE, sampling frequency of 51.2KS/s / channel. All the intelligence is built into the WebDAQ, eliminating the need for a PC or additional software. By using the embedded WebDAQ web server, users can easily configure simple or sophisticated applications, log vibration data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.
The WebDAQ 504 performs high-accuracy measurements from up to four IEPE (Integrated Electronic Piezoelectric) sensors. Housed in a heavy-duty chassis, the WebDAQ 504 is rugged enough for industrial applications such as noise and vibration testing

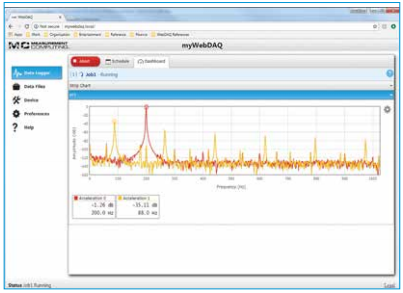

WebDAQ Web Interface
An embedded web server provides a clean, intuitive interface to access all configuration and data management tasks.
Hardware, trigger and alarm settings are contained in a single task, or “job”. Multiple “jobs” can be run in a “schedule” for more complex data logging applications.
For example, users can create a schedule of jobs in which one job automatically runs after an alarm condition is triggered on a different job, such as when a temperature is reached or when a digital input changes.
Find more details in video and MCC’s website:
Find all our data loggers on our site
