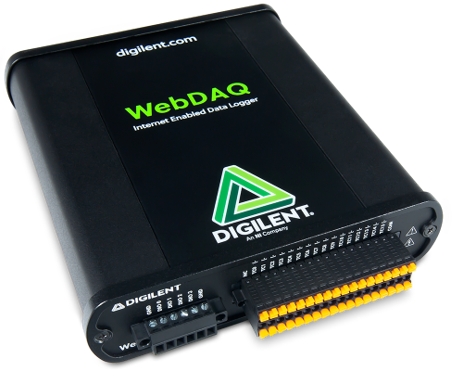

WebDAQ-316: Thermocouple data logger, internet-enabled, with 16 channels, 24-bit resolution, 75 S/s/ch max sample rate, and 4 digital I/O
The WebDAQ-316 is a stand-alone, 16 channels temperature (Thermocouple) data logger designed for remote monitoring and control. All the intelligence is built into the WebDAQ, eliminating the need for a PC or additional software. By using the embedded WebDAQ web server, users can easily configure simple or sophisticated applications, log temperature data, update digital outputs and/or send notifications based on alarm conditions, and view real-time data from any location and any device with a web browser.
The WebDAQ 316 provides 16 isolated thermocouple inputs (J, K, T, E, N, B, R, S) , and four isolated digital bits that can be used as trigger inputs or alarm outputs. Housed in a heavyduty chassis, the WebDAQ 316 is rugged enough for industrial applications.
WebDAQ Web Interface
An embedded web server provides a clean, intuitive interface to access all configuration and data management tasks.
Hardware, trigger and alarm settings are contained in a single task, or “job”. Multiple “jobs” can be run in a “schedule” for more complex data logging applications.
For example, users can create a schedule of jobs in which one job automatically runs after an alarm condition is triggered on a different job, such as when a temperature is reached or when a digital input changes.
