| VX 6620-10 | Output power: ±10 V / ±1 A | |
| VX 6620-20 | Output power: ±20 V / ±0.5 A | |
| VX 6620-40 | Output power: ±40 V/±0.25 A | |
| VX 6620-60 | Output power: ±60 V/±0.20 A | |
| Option A (toujours incluse) | Measurement unit for voltage and current | |
| Option B (toujours incluse) | Dual mode, provides a second power range with half voltage and higher current | |
| Option C | Low noise option | |
| Option PBF | All components RoHS compliant |

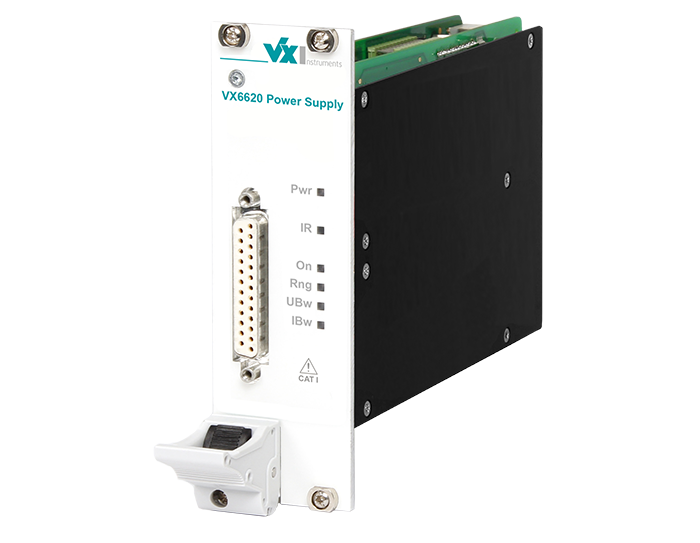

VX6620 - cPCI System Power Supply
Main features
- CompactPCI system power supply
- Supports current source and sink
- No external power source required
- Dual mode, provides two power ranges
- Measurement function for output voltage and current
- Very fast rise and fall times
- Sense inputs for superior load regulation
- Autosensing to protect DUTs reliably
- Digital calibration via system interface
VX6620 : cPCI System Power Supply
The potential-free power supplies of the VX66xx family stand for precision and reliability and are characterized by many extras such as extremely low noise, very short rise and fall times and additional measurement functions. The energy is completely provided by the PXI chassis, therefore external power supplies are not necessary.
All outputs are galvanically isolated, which among other things ensures low signal noise. It is also possible to connect power supplies in series.
