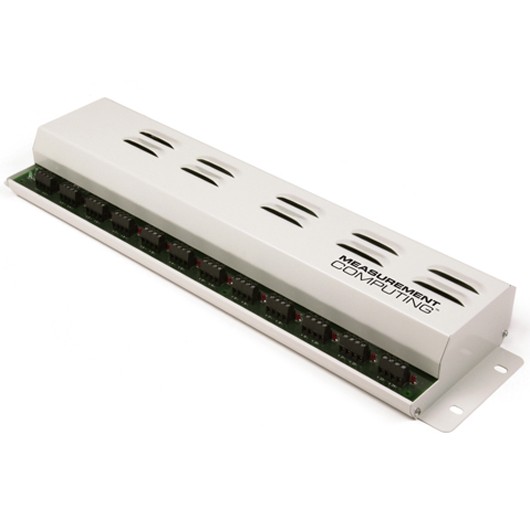

USB-SSR24: MCC USB module with 8 digital I/O for SSR modules
Measurement Computing’s (MCC) USB-SSR24 is a USB device that allows you to monitor and control up to eight full-size SSR solid-state I O modules (relays sold separately).
SSR digital I/O modules are relay control modules that provide 4000 Vrms of optical isolation. Digital input modules sense AC/DC voltages from field devices and convert them to digital TTL signals. Digital output modules use TTL signals to switch and control AC/DC loads.
A wide selection of SSR digital I/O modules are available to switch or sense a large range of AC or DC voltages.
Modules available:
SSR-IAC-05: Solid state relay module, single, AC sense, 90 to 140 VAC/VDC
SSR-IAC-05A: Solid state relay module, single, AC sense, 180 to 280 VAC/VDC
SSR-IDC-05: Solid state relay module, single, DC sense, 3 to 32 VDC
SSR-IDC-05NP: Solid state relay module, single, DC sense, 15 to 32 VAC, 10 to 32 VDC non-polarized digital inputs
SSR-OAC-05: Solid state relay module, single, AC switch, 24 to 140 VAC, 3.5 A @ 120 VAC
SSR-OAC-05A: Solid state relay module, single, AC switch, 24 to 280 VAC, 3.5 A @ 240 VAC
SSR-ODC-05: Solid state relay module, single, DC switch, 3 to 60 VDC @ 3.5 A
SSR-ODC-05A: Solid state relay module, single, DC switch, 4 to 200 VDC, 3.5 A
INCLUDED SOFTWARE
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
OPTIONAL SOFTWARE
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
Find all MCC ‘s DAQ-USB modules on our website
