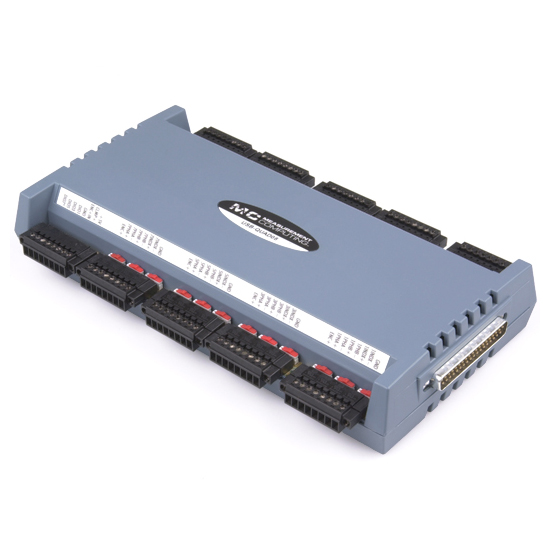

USB-QUAD08: DAQ-USB MCC – Quadrature encoders with 8 channels and 8 digital I / O
The high-performance USB-QUAD08 data acquisition device provides simultaneous input and decoding for up to eight incremental quadrature encoders at resolution up to 48-bits. Its eight quadrature counters with indicator LEDs support both differential and single-ended inputs, and feature multiple programmable counting modes. The counters have less than 10 ns jitter, and accept input up to 10 MHz. The streaming speed to the PC is software configurable up to 8 MS/s. The USB-QUAD08 can also serve as a high-speed pulse counter for general counting applications. The eight digital I/O support up to 42.4 Vpk/50 VDC with clamping diodes for CEMF suppression.
The USB-QUAD08 has detachable screw terminals, and a 37-pin D-sub connector, pin-compatible with Measurement Computing’s PCI-QUAD04. A two-meter long USB cable is included with every USB-QUAD08 module. A one-meter long DB37F to 4 x DB9F (C37F-4X9F-1M) cable for connecting the device to four encoders via the 37-pin D-sub connectors is available as an option.
INCLUDED SOFTWARE
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
OPTIONAL SOFTWARE
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
