| USB-DIO96H-EU | USB-based digital I/O device with 96 high-current output (formerly USB-1096HFS), delivered with EU plug | 551 € |
| USB-DIO96H/50-EU | USB-based device with 96 high-current (24 mA source, 64 mA sink) digital I/O, uses 50-pin connectors, delivered with EU plug | 410 € |
USB-DIO96H Series - 96-Channel Digital I/O Devices
Main features
- 96 DIO
- high-drive TTL output
- source: 24 mA
- Sink: 64 mA.
- enclosed in a housing
- 1 event counter
Datasheet
USB-DIO96H Series: DAQ-USB MCC with 96 Digital I/O
The USB-DIO96H Series from MCC are digital I/O data acquisition devices.
USB-DIO96H Series provides 96 DIO channels that are configured as eight banks of eight ports and eight banks of four ports. Each port is independently configurable for input or output. USBDIO96H Series devices are designed to emulate 82C55 mode 0. Digital outputs are high-drive TTL that can source 24 mA/sink 64 mA.

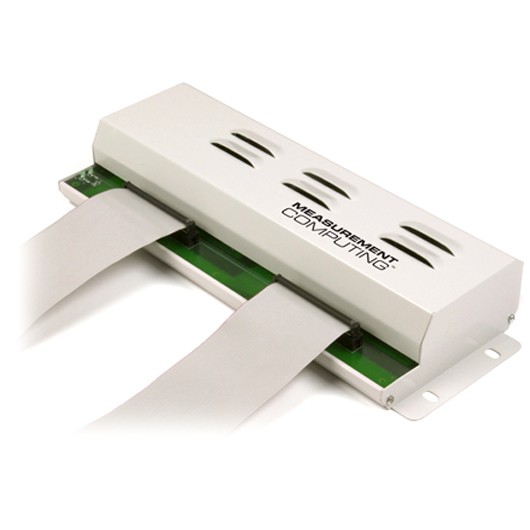

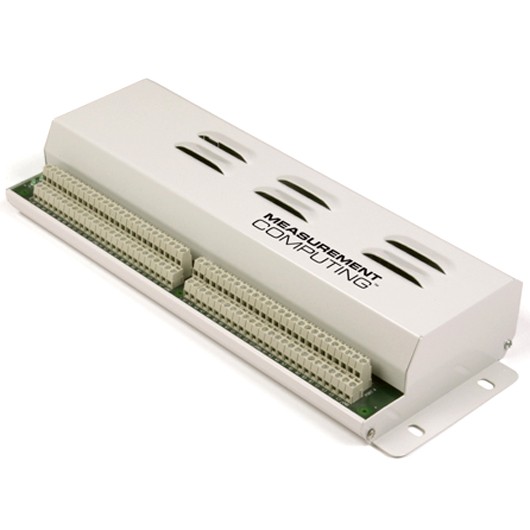

Digital I/O lines are accessed through the screw terminals on the USB-DIO96H, and through the header connectors on the USB-DIO96H/50. USB-DIO96H Series boards are shipped in a rugged metal enclosure that you can mount on a DIN rail or bench
INCLUDED SOFTWARE
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Linux® Support for MCC DAQ products
OPTIONAL SOFTWARE
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
- MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
