USB-DIO24 Series - 24-Channel Digital I/O Boards

USB-DIO24 Series: DAQ-USB MCC with 24 Digital I/O

The USB-DIO24 Series from MCC are digital I/O data acquisition devices.

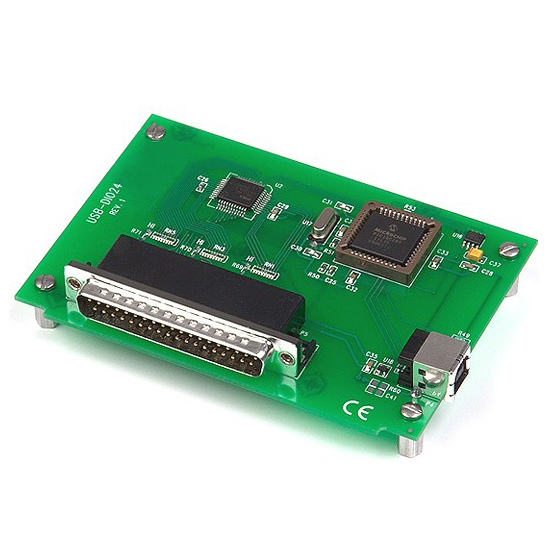

USB-DIO24 Series provide 24 DIO channels configured as either two banks of eight ports and two banks of four ports, or three banks of eight ports. Each port is independently configurable for input or output. The USB-DIO24/37 is designed with an 82C55 interface chip.

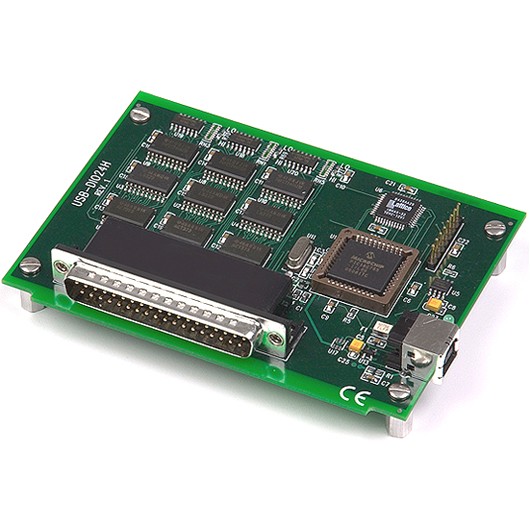

The USB-DIO24H/37 is designed to emulate 82C55 mode 0. Outputs are high-drive TTL that can source 15 mA and sink 64 mA.
Digital I/O lines are accessed through a 37-pin D-type connector
USBDIO24 Series are board-only

INCLUDED SOFTWARE

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Linux^® Support for MCC DAQ products

OPTIONAL SOFTWARE

• DAQami^TM – data acquisition companion software for acquiring data and generating signals
• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
• MATLAB^® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
