Main features
  • High-speed pulse counter for general counting applications
  • Available with 8 or 4 counter I/O
  • 48 MHz maximum input frequency
  • Programmable resolution up to 64-bits
  • Aggregate scan rate of 8 MB/s
  • Supports the following counter input modes:
    – Totalize (event counting)
    – Period measurements
    – Pulse-width measurements
    – Timing measurements
  • Debounce filter circuitry with flexible edge, level, direction, and debounce settings to better adapt to signals
  • Four independent pulse-width modulation (PWM) timers with count, period, delay, and pulse-width registers
  • Eight individually-configurable digital I/O channels
  • Synchronous high-speed reads of digital and counter inputs
  • External clock input and internal clock output
  • External digital trigger
  • No external power required
  • Board-Only OEM Versions Available

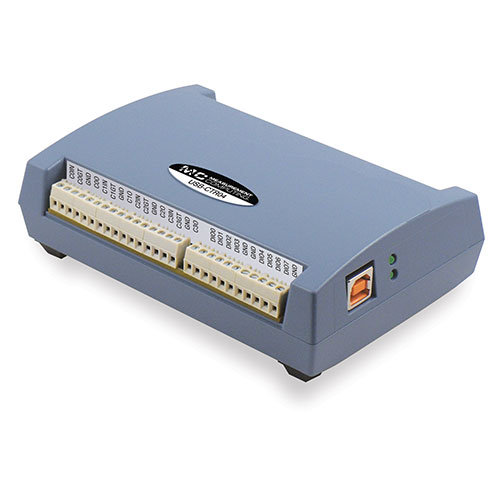

USB-CTR04 High-speed counter/timer device with 4 counter I/O, 4 PWM timer outputs, and 8 digital I/O 453 €

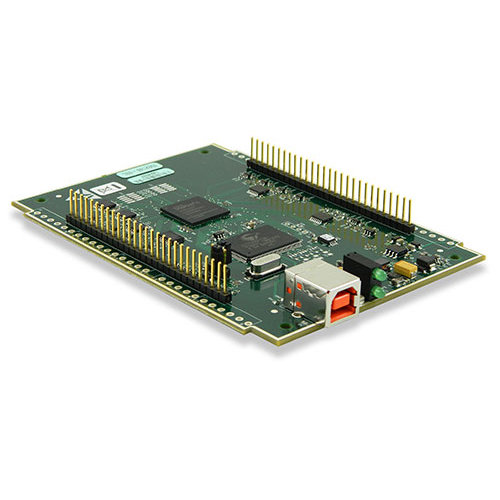

USB-CTR04-OEM High-speed counter/timer board with 4 counter I/O, 4 PWM timer outputs, and 8 digital I/O 453 €
USB-CTR08 High-speed counter/timer device with 8 counter I/O, 4 PWM timer outputs, and 8 digital I/O 528 €

USB-CTR series: DAQ-USB MCC – High speed counter / Timer, available in 4 or 8 channel version

Measurement Computing’s (MCC) USB-CTR Series is a high speed 4 or 8 counter / timer data acquisition system in USB format.

Both the eight-channel USB-CTR08 and the four-channel USB-CTR04 feature high frequency and scan rates, debounce filtering, support for multiple counting modes, and software-selectable resolution up to 64 bits. Both devices also provide eight individually-configurable digital I/O channels. USB-CTR Series devices support the following counter input modes: totalize mode (event counter), period measurement mode, pulse-width measurement mode, timing measurement mode.

USB-CTR Series devices have debounce circuitry which eliminates switch-induced transients that are typically associated with electromechanical devices including relays, proximity switches, and encoders. All debounce filter options are software selectable

USB-CTR Series devices have four 32-bit timer outputs. Each timer can generate a programmable width pulse with a softwareselectable frequency in the range of 0.02235 Hz to 48 MHz. At higher frequencies, the timer output frequency and duty cycle depend on the load impedance and the supply.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ-USB modules on our website
