USB-3100 series: DAQ-USB MCC with up to 16 Voltage and Current Output

Measurement Computing’s (MCC) USB-3100 Series is a DAQ-USB with up to 16 voltage/current output channels, with some devices offering high-drive analog outputs. Each device provides four, eight, or 16 voltage outputs. The USB-3102, USB-3104 et USB-3106 also provide four, eight, or 16 current outputs. All devices provide synchronous and concurrent voltage updates. All USB-3100 Series devices except the USB-3101FS provide eight digital I/O lines and one 32-bit event counter.

Analog Output

All USB-3100 Series devices provide either four, eight, or 16 channels of 16-bit analog output.

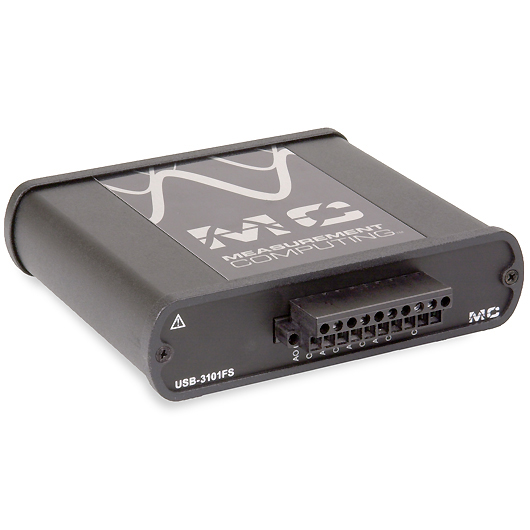

USB-3101FS: Each channel has a fixed ±10 V voltage output range. Outputs can be updated individually or simultaneously. Each channel has a D/A converter (DAC) that produces a voltage signal. Each channel also has ±30 V overvoltage and indefinite short-circuit protection. The USB-3101FS has 250 Vrms channel-to ground isolation that protects the device and computer from ground spikes and ensures a reliable data stream, making it suitable for high-voltage applications

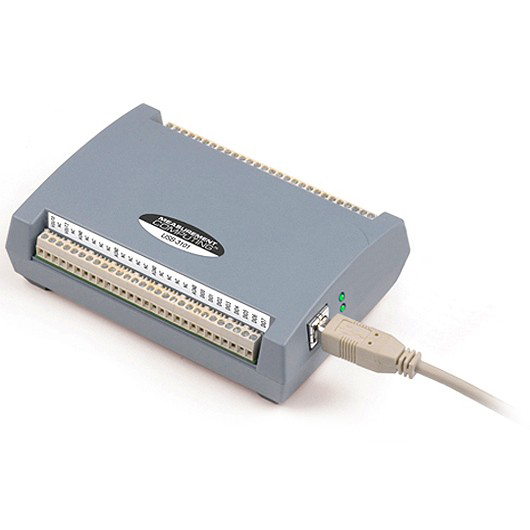

All Other USB-3100 Series Devices: Each channel is software-selectable for either a bipolar voltage output range of ±10 V or a unipolar range of 0 V to 10 V. Channel outputs can be updated individually or simultaneously.

Current Output (USB-3102/3104/3106 Only)

These devices provide 0 mA to 20 mA of current output. Each DAC controls a voltage/current channel pair simultaneously. Each channel pair can be updated individually or simultaneously.

All USB-3100 Series devices except the USB-3101FS have eight bidirectional DIO lines. All digital pins are floating by default. A screw terminal connection is provided to configure for pull-up (+5 V) or pull-down (0 V).
Each USB-3100 Series device except for the USB-3101FS has a 32-bit event counter for counting TTL pulses. The counter increments when the TTL levels transition from low to high. The counter accepts frequency inputs of up to 1 MHz.

INCLUDED SOFTWARE

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Linux^® Support for MCC DAQ products
• Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

• DAQami^TM – data acquisition companion software for acquiring data and generating signals
• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
• MATLAB^® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development

Find all MCC ‘s DAQ-USB modules on our website

USB-3101FS, USB-3101, USB-3102, USB-3103, USB-3104, USB-3105, USB-3106, USB-3110, USB-3112, USB-3114
