USB-2404 Series - Multifunction USB DAQ with 4 simultaneous 24-Bit A/D, isolated ( universal input version is also available)

USB-2404 Series: DAQ-USB MCC with 4 analog inputs 24-Bit, simultaneous, isolated

Measurement Computing’s (MCC) USB-2404 Series is a DAQ-USB with 4 analog inputs, 24-Bit, simultaneous, isolated analog inputs (250Vrms channel-to-channel and channel-to-ground isolation).

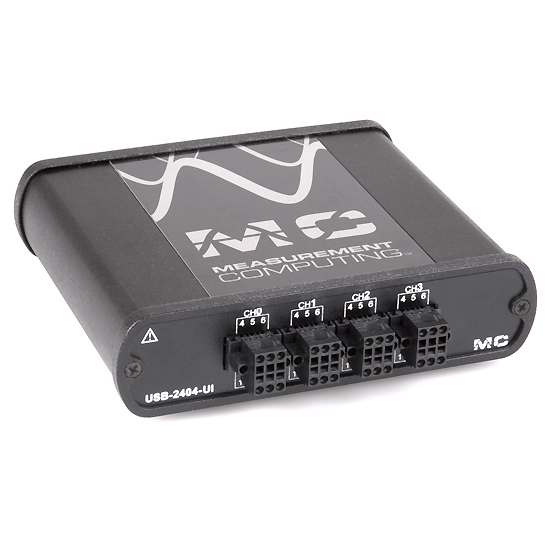

The USB-2404-UI provides four individually configurable channels of 24-bit universal analog input with integrated signal conditioning. All channels are measured simultaneously at up to 100 S/s per channel. USB-2404-UI can perform the following measurements: Voltage, Current, Thermocouple, RTD (4-wire and 3-wire), Resistance (4-wire and 2-wire), Bridge-based sensors (quarter-, half-, and full-bridge) Measurement ranges vary for each type of measurement. The USB-2404-UI features built-in current and voltage excitation. The excitation circuit is protected from overcurrent and overvoltage fault conditions. USB-2404-UI supports class II TEDS smart sensors, and includes a built-in thermistor for cold-junction compensation (CJC). An analog pre-filter removes noise that may be present in the signals prior to conversion.

The USB-2404-10 and the USB-2404-60 each provide four channels of 24-bit simultaneous analog inputs and a sampling rate of 50 kS/s per channel, maximum. A master timebase frequency controls the sample rate. The input voltage range is ±10 V for the USB-2404-10, and ±60 V, for the USB-2404-60. The anti-alias filter removes noise that may be present in the
signals prior to conversion. These devices combine analog and digital filtering to accurately represent in-band signals while rejecting out-of-band signals. The filters discriminate between
signals based on the frequency range, or bandwidth, of the signal. The passband, stopband, and alias-free bandwidths are important.

INCLUDED SOFTWARE

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ-USB modules on our website
