USB-231 - Multifunction DAQ-USB with 8 SE /4 DIFF A/D 16-Bit, 50KS/s and 2 Analog Outputs

USB-231: DAQ-USB MCC with 8SE/4DIFF A/D 16-Bit, 50KS/s and  D/A 16-Bit

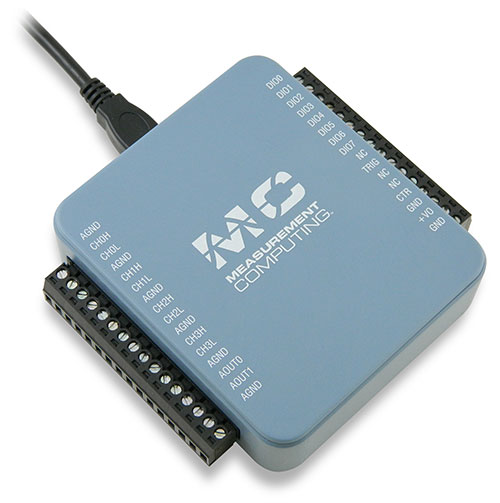

Measurement Computing’s  (MCC) USB-231 is a DAQ-USB with 8 single-wire (SE) analog inputs or 4 differential (DIFF) analog inputs , multiplexed, 16-bit resolution with a fixed input range of ± 10 V with a maximum sampling frequency of 50KS/s aggregate. The total acquisition rate for all channels cannot exceed 50KS/s. The USB-231 also has two 16-Bit analog outputs. Both outputs can be updated simultaneously at a rate of 5KS/s per channel. The output range is fixed between 0 V to 5 V.

The USB-231 has eight TTL digital I/O. Each digital channel is software selectable as input or output. When you configure the digital input channels, you can use them to detect the state of a TTL level input. Finally, the USB-231 has a 32-Bit TTL level event counter that accepts inputs up to 5 MHz.

Included Software

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Python™ Support for MCC DAQ Products

Optional Software

• DAQami^TM – data acquisition companion software for acquiring data and generating signals
• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ-USB modules on our website
