| USB-205 | Data acquisition USB device with 8 SE analog inputs, 12-bit resolution, 500 kS/s, 2 D/A and 8 digital I/O | 241 € |
| USB-205-OEM | USB-based OEM data acquisition board with 8 SE A/D, 12-bit resolution, 500 kS/s, 2 D/A and 8 digital I/O | 226 € |

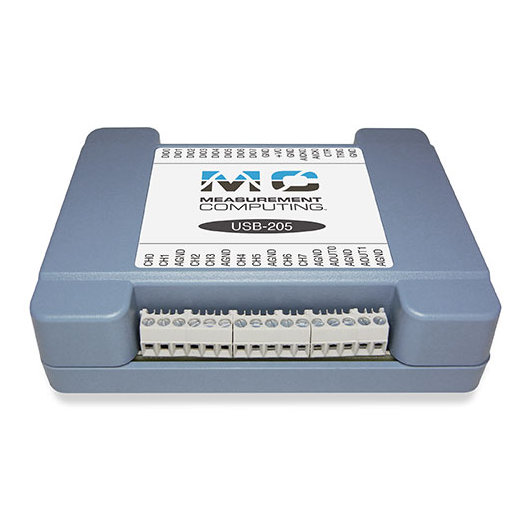

USB-205 - Multifunction DAQ-USB with 8 A/D 12-Bit, 500KS/s and 2 Analog Outputs
Main features
- 8 SE analog inputs
- ±10 V input range
- 12-bit resolution
- 500 kS/s sample rate
- Two 12-bit analog outputs
- 8 digital I/O
- One 32-bit counter
- Board-Only OEM Version Available
USB-205: DAQ-USB MCC with 8 A/D 12-Bit, 500KS/s and 2 DAC
Measurement Computing’s (MCC) USB-205 is a DAQ-USB featuring 8 single-ended multiplexed analog inputs, 12-Bit resolution with a fixed input range of ± 10 V with a maximum sample rate of 500KS/s aggregate. The total acquisition rate for all channels cannot exceed 500KS/s.
The USB-205 has two 12-bit analog output channels. Both outputs can be updated simultaneously at a rate up to 125 S/s per channel. One output can be updated at a rate up to 250 S/s. The output range is fixed at 0 V to 5 V.
USB-205 has eight TTL digital I/O. Each digital channel is software selectable as input or output. When digital channels are configured as input, you can use them to detect the state of a TTL level input. An internal jumper allows digital I/O to be configured in pull-up or pull-down (default) mode. Finally, the USB-205 has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.
The USB-200 Series is factory-calibrated using a NIST-traceable calibration process. Specifications are guaranteed for one year.
Included Software
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
Optional Software
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
- MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
