USB-202 - Multifunction DAQ-USB with 8 A/D 12-Bit, 100KS/s and 2 Analog Outputs

USB-202: DAQ-USB MCC with 8 A/D 12-Bit, 100KS/s and 2 DAC

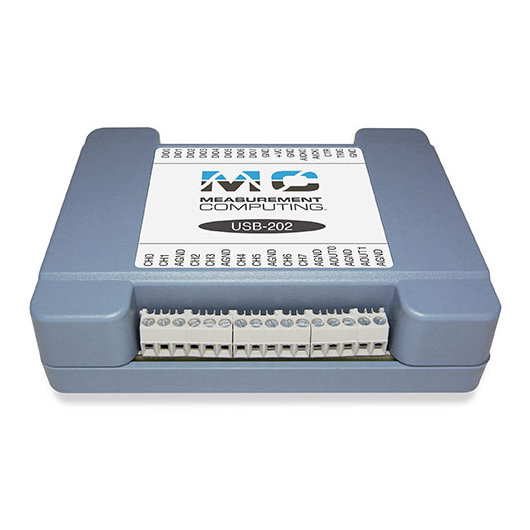

Measurement Computing’s (MCC) USB-202 is a DAQ-USB featuring 8 single-ended multiplexed analog inputs, 12-Bit resolution with a fixed input range of ± 10 V with a maximum sample rate of 100KS/s aggregate. The total acquisition rate for all channels cannot exceed 100KS/s.

The USB-202 has two 12-bit analog output channels. Both outputs can be updated simultaneously at a rate up to 125 S/s per channel. One output can be updated at a rate up to 250 S/s. The output range is fixed at 0 V to 5 V.

USB-202 has eight TTL digital I/O. Each digital channel is software selectable as input or output. When digital channels are configured as input, you can use them to detect the state of a TTL level input. An internal jumper allows digital I/O to be configured in pull-up or pull-down (default) mode. Finally, the USB-202 has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.

The USB-200 Series is factory-calibrated using a NIST-traceable calibration process. Specifications are guaranteed for one year.

Included Software

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Universal Library for Android^® includes support and examples for the Android 3.1 platform (API level 12) and later
• Linux^® Support for MCC DAQ products
• Python™ Support for MCC DAQ Products

Optional Software

• DAQami^TM – data acquisition companion software for acquiring data and generating signals
• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
• MATLAB^® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
