USB-1901 | 16-CH 16-Bit 250kS/s Analog Input USB DAQ | |
USB-1902 | 16-CH 16-Bit 250kS/s Multi-Function USB DAQ | |
USB-1903 | 8-CH 16-Bit Current Input Multi-Function USB DAQ |
USB-1901/1902/1903 - 8/16-CH 16-Bit 250 kS/s Multi-Function USB DAQ Modules (OEM version available)
Main features
- USB 2.0, alimenté par le bus USB
- Module de connection amovible
- Câble USB verrouillable pour une connectivité sécurisée
- 16 entrées tension 250 Ke/s (USB-1901/1902)
- 8 entrée courant 250 Ke/s (USB-1903)
- 2 sorties tension 1 Me/s (USB-1902/1903)
- Déclenchement analogique et numérique
- Application de test prête à l’emploi (U-Test) fournie
- Système d’exploitation pris en charge: Windows 7/8 x64 / x86, Linux et MAC

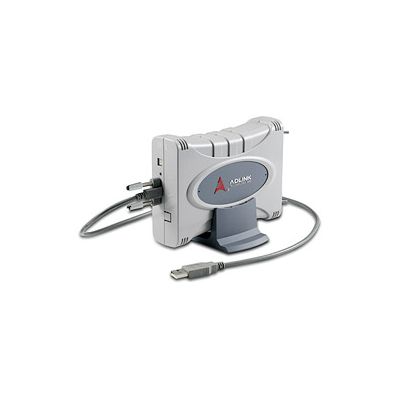

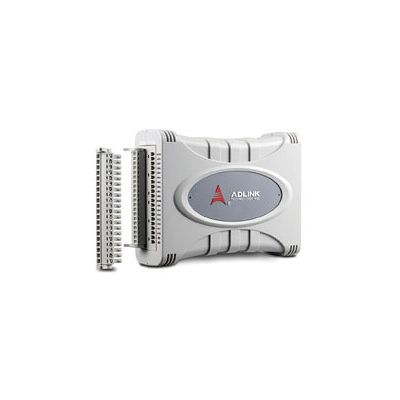

The ADLINK USB-1900 series provides a range of USB 2.0-based multi-functional DAQ modules. The USB-1901 and USB-1902 16-bit 250 kS/s USB 2.0-based high-performance DAQ modules allow four different voltage input ranges, while the USB-1903 features additional built-in precision current-tovoltage resistors capable of direct measurement of current signal from 0 to 20 mA. The USB-1900 series is USB bus powered and equipped with removable screw-down terminals for easy device connectivity. The attached multi-functional stand can be used for desktop, rail, or wall mounting. Suitable for mixed-signal tests, laboratory research, and factory automation, the USB-1900 series provide a simple measurement solution at an affordable price.
