USB-1608G Series - Multifunction DAQ-USB with 16 SE /8 DIFF A/D 16-Bit, 500KS/s and 2 Analog Outputs

USB-1608G Series - Multifunction DAQ-USB with 16 SE /8 DIFF A/D 16-Bit, 500KS/s and 2 Analog Outputs
Clear
Main features
  • 16 SE or 8 DIFF analog inputs
  • 16-Bit resolution
  • Sampling up to 500 KS/s
  • 2 analog outputs (only on the USB-1608GX-2AO & USB-1608GX-2AO-OEM versions)
  • 8 digital I / O
  • 2 counters
  • 1 Timer
  • OEM version (only for card)

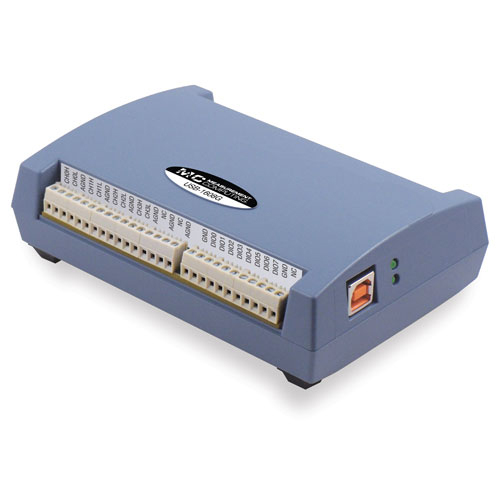

USB-1608G USB-based DAQ device with 16SE/8DIFF A/D 16-Bit, 250KS/s with 8 digital I/O, 2 counters and 1 Timer 497 €

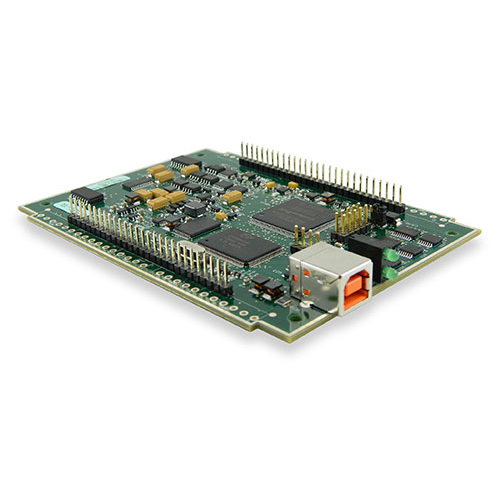

USB-1608G-OEM USB-based DAQ board with 16SE/8DIFF 16-bit A/D, 250KS/s with 8 digital I/O, 2 counters and 1 Timer (OEM) 497 €
USB-1608GX-OEM USB-based DAQ board with 16SE/8DIFF 16-bit A/D, 500KS/s with 8 digital I/O, 2 counters and 1 Timer (OEM) 993 €
USB-1608GX-2AO USB-based DAQ device with 16SE/8DIFF A/D 16-Bit, 500KS/s with 2D/A, 8 digital I/O, 2 counters and 1 Timer 993 €
USB-1608GX-2AO-OEM USB-based DAQ board with 16SE/8DIFF 16-bit A/D, 500KS/s with 2 D/A, 8 digital I/O, 2 counters and 1 Timer (OEM) 993 €

USB-1608G series: DAQ-USB MCC with 16 SE / 8 DIFF A/D 16-Bit, up to 500KS/s

Measurement Computing’s (MCC) USB-1608G Series is a DAQ-USB with 16 single-wire analog inputs (SE) or 8 differential analog inputs (DIFF), multiplexed, 16-Bit resolution with an input range of ± 10 V, ± 5 V, ± 2 V and ± 1 V. The USB-1608G models support sample rates up to 250 KS/s (aggregate) whereas USB-1608GX models support sample rates up to 500KS/s (aggregate).

The USB-1608GX-2AO (standard and OEM) also has two 16-Bit analog outputs. Both outputs can be updated simultaneously at a rate of 250 KS/s per channel or one output can be updated at a rate of 500 KS/s with a fixed output range of ± 10 V.

The USB-1608G series has 8 TTL level digital I/O individually configurable as input or output. An internal jumper allows them to be configured in pull-up (+ 5V) or pull-down (0V) mode.

Finally, the USB-1608G series has 2 TTL level 32-Bit counters that accept inputs up to 20 MHz and a PWM output generates a pulse output with a programmable frequency in the range of 0.0149 Hz to 32 MHz. Timer output parameters are software selectable.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
  • MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development

Find all MCC ‘s DAQ-USB modules on our website
