USB-1608FS-Plus - Multifunction DAQ-USB with 8 SE A/D 16-Bit 100KS/s Simulatenous

USB-1608FS-PLUS: DAQ-USB MCC with 8SE A/D 16-Bit, simultaneous, 100KS/s

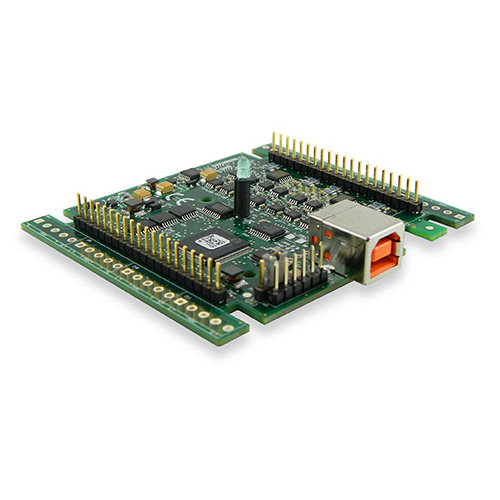

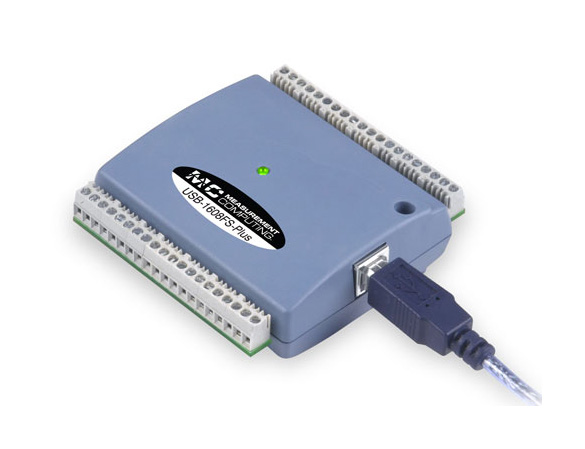

Measurement Computing’s (MCC) USB-1608FS-Plus is a DAQ-USB with 8 simultaneous single-ended(SE) analog inputs, 16-Bit resolution, with a software programmable input range of ± 10 V, ± 5 V, ± 2 V and ± 1 V. The maximum sampling frequency is 100Ks/s per channel.

The USB-1608FS-Plus has 8 TTL-level digital I/O lines. Each digital channel is software selectable as input or output. An internal jumper allows digital I/O to be configured in pull-up (default) or pull-down mode.

Finally, the USB-1608FS-Plus has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.

Included Software

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Universal Library for Android^® includes support and examples for the Android 3.1 platform (API level 12) and later
• Linux^® Support for MCC DAQ products
• Python™ Support for MCC DAQ Products

Optional Software

• DAQami^TM – data acquisition companion software for acquiring data and generating signals
• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
• MATLAB^® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
