USB-1208FS-Plus - Multifunction DAQ-USB with 8 SE /4 DIFF A/D 12-Bit, 50KS/s and 2 Analog Outputs

USB-1208FS-PLUS: DAQ-USB MCC WITH 8SE/4DIFF A/D 12-Bit, 50KS/s and 2 D/A 12-Bit

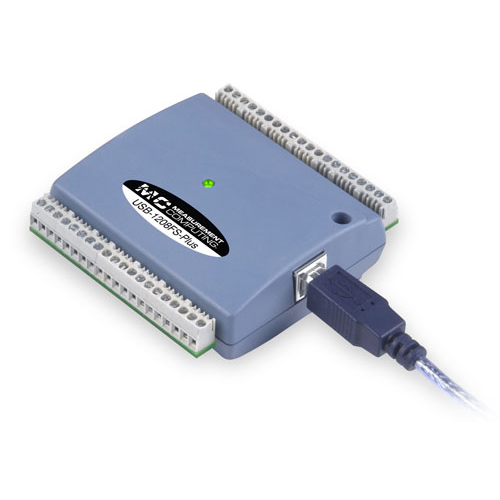

Measurement Computing’s (MCC) USB-1208FS-Plus is DAQ-USB providing eight, 11-bit SE analog inputs or four, 12-bit DIFF analog inputs. All devices support software-selectable ranges that provide inputs from ±1 V to ±20 V in a DIFF configuration, and ±10 V in a SE configuration. In hardware-paced mode, the USB-1208FS-Plus can sample at a maximum of 50 kS/s (aggregate). The total acquisition rate for all channels cannot exceed 50KS/s.

The USB-1208FS-Plus has two analog outputs. Each channel can be paced at rates up to 50,000 updates per second. The output range is 0 V to 5 V. Note: The maximum analog output update rate for all devices depends on several factors, including USB port speed.

The USB-1208FS-Plus provides 16 TTL-level digital I/O lines. Digital I/O can be programmed on each 8-bit port (Port A and Port B) for either input (default) or output. All pins pulled up to 5V via 47kΩ resistors (default). Change to pull-down using internal user-configurable jumpers.

Finally, the USB-1208FS-Plus has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.

Included Software

• TracerDAQ^® for acquiring and displaying data and generating signals
• InstaCal^TM software utility for installing, configuration, and testing
• Universal Library includes support for Visual Studio^® and Visual Studio^®.NET, including examples for Visual C++^®, Visual C#^®, and Visual Basic^®.NET
• ULx for NI LabVIEW^TM Library of VIs and example programs to speed your NI LabVIEW development
• Universal Library for Android^® includes support and examples for the Android 3.1 platform (API level 12) and later
• Linux^® Support for MCC DAQ products
• Python™ Support for MCC DAQ Products

Optional Software

• DAQami^TM – data acquisition companion software for acquiring data and generating signals
• DASYLab^®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
• TracerDAQ^®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
• MATLAB^® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
