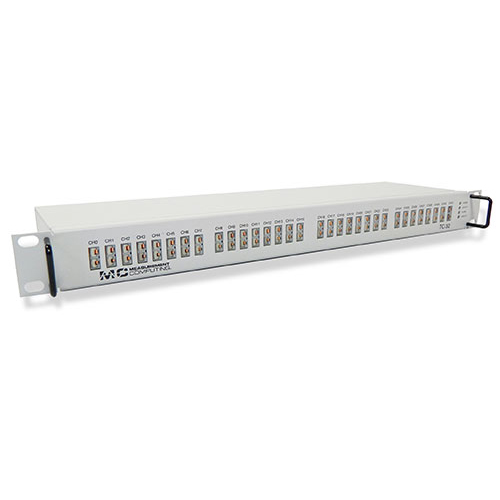

TC-32 - USB/Ethernet-Based High-Precision Thermocouple Measurement Device

TC-32 - USB/Ethernet-Based High-Precision Thermocouple Measurement Device
Clear
Main features
  • USB and Ethernet interfaces
  • 32 differential thermocouple (TC) inputs
    – Expandable to 64 TC inputs with TC-32-EXP expansion device
    – TC channel-to-host isolation
  • Easy-to-connect mini-jack connectors
  • 24-bit resolution
  • 3 S/s per channel sample rate
  • Supports J, K, R, S, T, N, E, and B type thermocouples (software-selectable per channel)
  • Per channel out-of-range alarm configuration
  • Cold-junction compensation (CJC) sensor per channel
  • Open thermocouple detection
  • 8 digital inputs and 32 digital outputs/alarms
    – Expandable to 16 digital inputs, and 64 digital outputs/alarms with TC-32-EXP expansion device
    – Isolated from TC inputs and host
    – 50-pin header connector (cable sold separately)
  • 19” rack mountable
TC-32 USB or Ethernet-based 24-bit, 32-channel thermocouple input device with 8 DI and 32 DO/alarms. (included US PSU)
TC-32-EXP 24-bit, 32-channel TC input expansion with 8 DI and 32 digital DO/alarms. Includes 40-pin expansion cable
TC-32-EP Europe Plug for TC-32

 TC-32 from MCC: Acquisition system for temperature measurement (thermocouple), 32 channels with Ethernet and USB interface – Expandable to 64 channels

TC-32 from Measurement Computing (MCC) is an acquisition system with 32 differential inputs, 24-Bit,  for temperature measurement (Thermocouple). Coupled with the TC-32-EXP extension, the TC-32 will be able to acquire up to 64 Thermocouple channels. The maximum sample rate is 3 S/s per channel. Each channel is individually configurable by software and supports thermocouples types J, K, R, S, T, N, E and B. The thermocouples connect directly to the TC32 via mini-jack connectors.
Each Thermocouple input has its own CJC, which guarantees high temperature measurement accuracy. All TC32 Thermocouple inputs also have open thermocouple detection (OTD). The TC-32-EXP extension has the same characteristics as the TC-32 in terms of the type of Thermocouples, CJCs and OTDs.

The TC-32 has 8 digital inputs and 32 digital outputs electrically isolated from the PC and analog circuits. It is also possible to configure the digital outputs as an alarm for each TC input. When an alarm is activated, the output line associated with the alarm is configured to the appropriate state determined by the alarm options and the inlet temperature. Alarm configurations are stored in non-volatile memory and loaded when the TC-32 is powered up. When a temperature exceeds a temperature threshold, an alarm can be triggered. This output can be connected to another device, such as a physical alarm or a control system. Each digital output can provide up to 100mA.

Digital I/O signals and alarms are accessible through TC-32 and TC-32-EXP.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ modules on our website
