| Talos-2110/M4G/500G HDD | 6th Intel® Core™ i7-6700 processor-based automation system with EtherCAT & 4CH GigE Vision support, 4GB RAM and 500GB HDD | |
| Talos-2210/M4G/500G HDD | 6th Intel® Core™ i5-6500 3.6GHz processor-based automation system with EtherCAT & 4CH GigE Vision support, 4GB RAM and 500GB HDD | |
| Talos-2310/M4G/500G HDD | 6th Intel® Core™ i3-6100 3.7 GHz processor-based automation system with EtherCAT & 4CH GigE support, 4GB RAM and 500GB HDD | |
| Talos-2410/M4G/500G HDD | 6th Intel® Celeron™ G3900 2.8 GHz processor-based automation system with EtherCAT & 4CH GigE support, 4GB RAM and 500GB HDD |

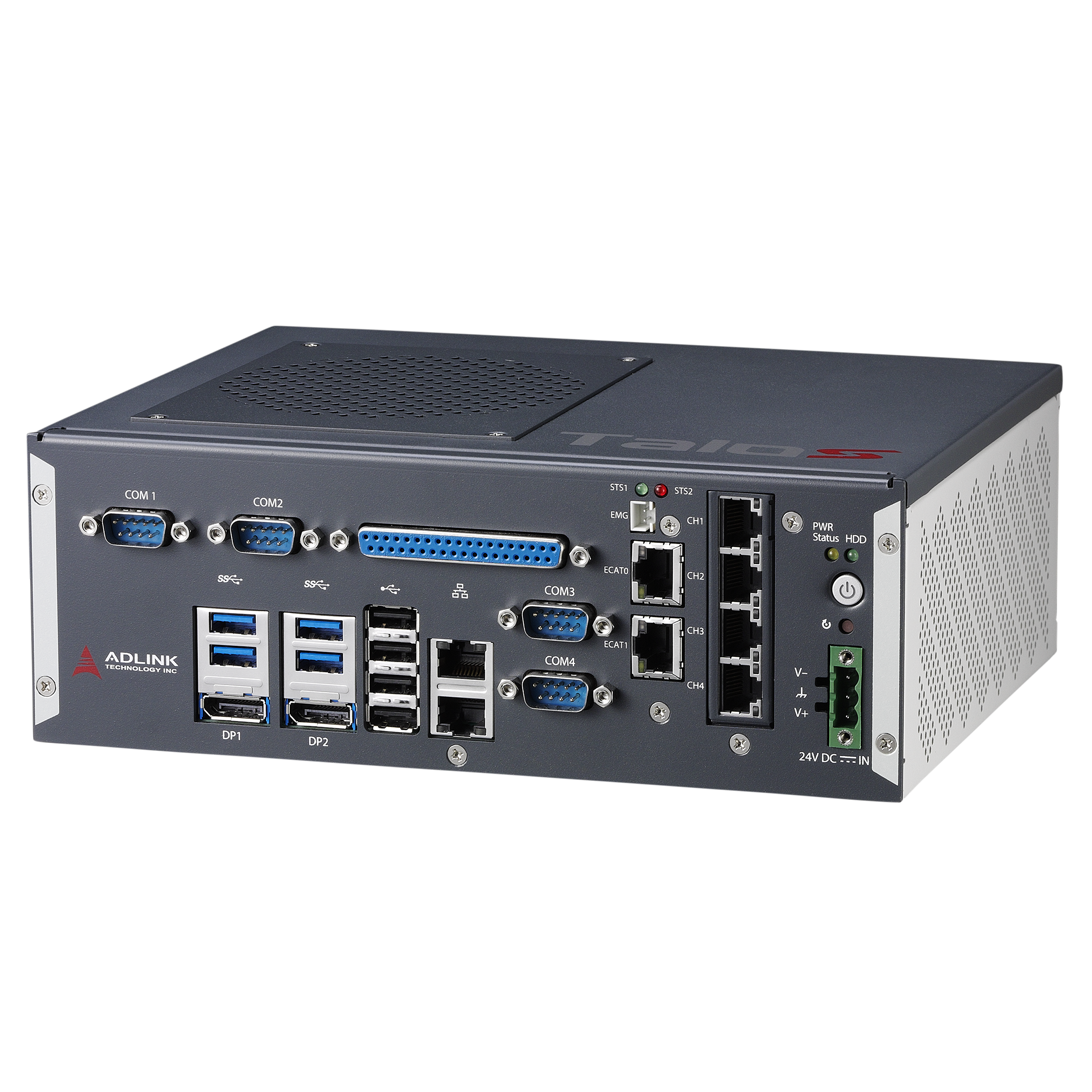

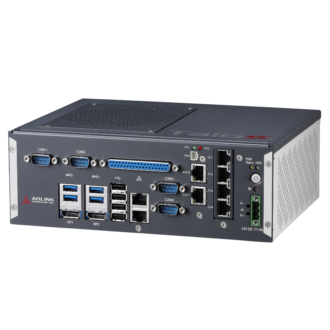

Talos-2000 Series - 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Automation Control System with EtherCAT & 4CH GigE Vision Support
Main features
- 6th Generation Intel® Core™ i7/i5/i3 Processor
- Up to 64-axis motion control & 10,000 I/O point control via EtherCAT; Up to 4CH Gigabit PoE (power over Ethernet)
- EtherCAT cycle time up to 250μs
- Broad AVL of EtherCAT slaves, PoE cameras
- Point-table functions enabling application contouring
- Support for up to 16D linear, 3D circular, and 3D spiral interpolation
- Easy installation and maintenance with flexible function extensions via Ethernet connection
- 4CH isolated digital input/4CH isolated digital output
ADLINK’s Talos-2000 Series ready-to-use automation control system, powered by 6th Generation IntelR Core? i7/i5/i3 processors, provides EtherCAT control and four independent PoE (power over Ethernet) ports, with data transfer rates up to 4.0Gb/s. The Talos-2000 Series offers motion control of up to 64 axes, 10,000 I/O points, and 4CH PoE camera connectivity with minimal footprint. The ideal solution for machinery automation, Talos-2110 integrates complete APIs for multi-dimensional, highly synchronized and time-deterministic event-triggered motion & I/O control, high precision image capture, and data transmission. Field device connectivity in the Talos-2000 Series is provided through RJ45 connection for easy installation, and the latest 6th Generation IntelR Core? i7/i5/i3 processors enable powerful and flexible EtherCAT slave control, broad PoE camera compatibility, and compact size.
