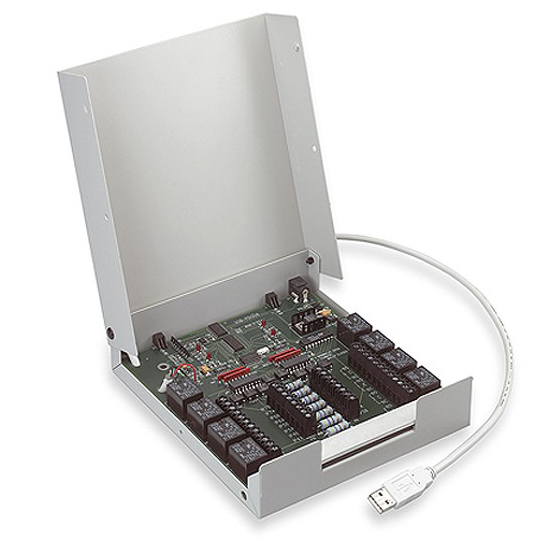

SwitchAndSense-8/8 - USB-based 8 Relay Output, 8 Isolated Input, Digital I/O System

Summary

The SwitchAndSense 8/8 expands the capabilities of desktop personal computers by providing eight isolated AC or DC inputs and eight electromechanical relays in a single USB compatible system. The inputs monitor 24 V AC or DC inputs while the output relays provide 6 Amp (Form C, SPDT) outputs at 120 VAC or 28 VDC. Screw terminals provide easy field wiring to all inputs and outputs.
The SwitchAndSense 8/8 is completely plug-and-play. There are no switches, or jumpers on the board. All board addresses, interrupt channels etc. are set by your computer’s USB plug-and-play software.

Software

• Support for DAQami data acquisition companion software for acquiring data and generating signals
• TracerDAQ® for acquiring and displaying data and generating signals
• Universal Library includes support for Visual Studio® and Visual Studio® .NET, including examples for Visual C++®, Visual C#®, Visual Basic®, and Visual Basic® .NET
• DASYLab® and NI LabVIEW™ drivers
• MATLAB® Data Acquisition Toolbox™ support (32-bit support only. 64-bit MATLAB (ver. R2016) available soon. Contact The Mathworks for more information)
• InstaCal™ software utility for installing, configuration, and testing
• Supported Operating Systems: Windows® 10/8/7/Vista®/XP, 32-bit or 64-bit
