The SMX-2002 is the only switch module in its class with the ability to switch up to 16A. Some applications include: AC line power switching, switching of DC or AC power supplies, control or driving relays for industrial machines (robotics, numerical control machines), automotive engine control, and solenoid switching. Since this module typically switches power to the UUT or interface, the SMX-2002 includes failsafe pins on the front panel which can be configured to open all relays when a failsafe signal is activated. This approach can instantly removes all power to the UUT or interface.

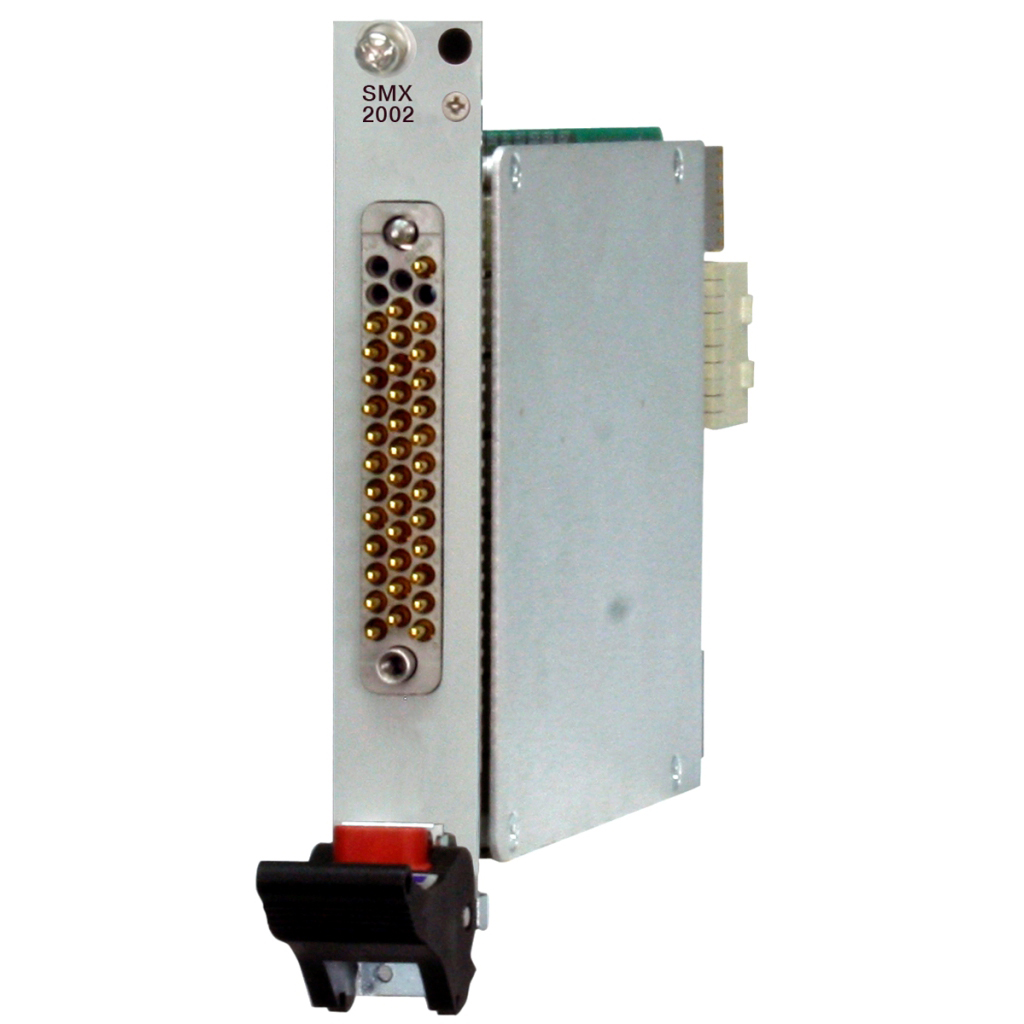

SMX-2002 - 10 Channel 16 Amp, Instriument grade PXIe, Form C (SPDT) Switch
Main features
- 10 SPDT (Form C) switch
- Max Voltage switching 250 Vac / 120 Vdc
- Max Current switching 16 A
- Max Poxwer switching 480 W DC, 4000 VA
- High breakdown voltage (1,000 V rms between open contacts)
- Ideal for applications such as high current/high power switching, AC line power switching, driving relays for industrial machinery, solenoid switching, and automotive engine control
- Fail-safe interrupt inputs that can detect a fault condition automatically open up relays to their default state
