| PXM7810 | Device with PXI Express interface | |
| PXMe7810 | Device with PXI interface |

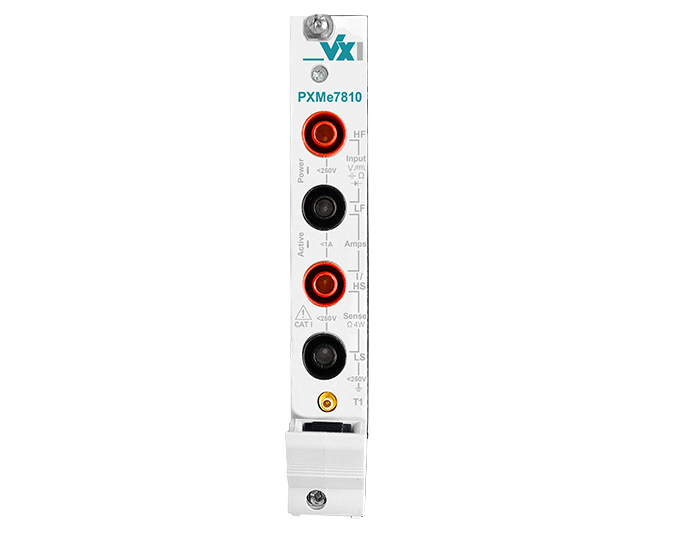

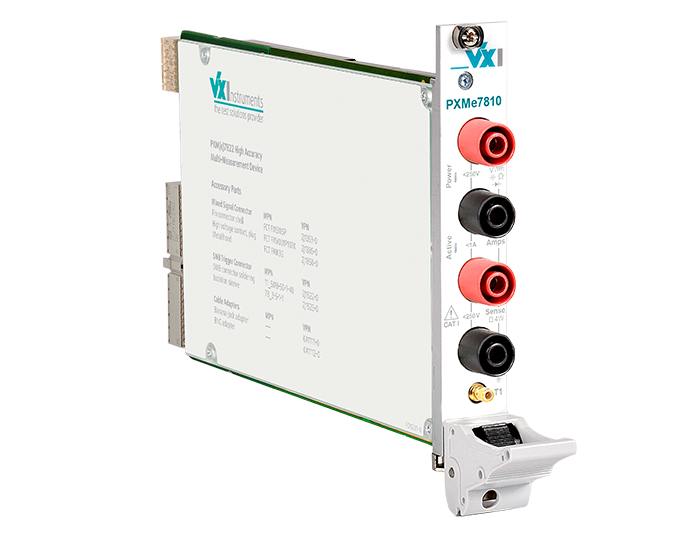

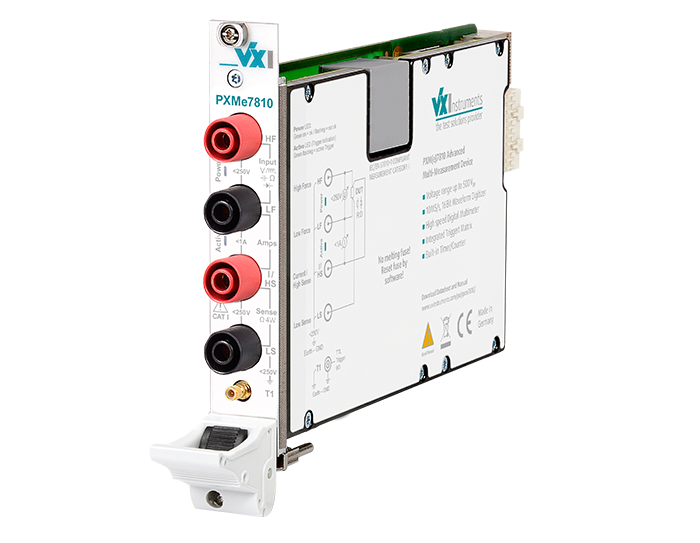

PXM(e)7810 - Advanced Multi-Measurement Device.
Main features
- 4 Instruments in 1 device:
- 16 Bit high precision Digital Multimeter
- 16 Bit isolated Digitizer
- Trigger Matrix
- Timer/Counter
- Changing range in under 1 ms
- 1 Trigger I/O an der Geräte-Front (8 auf der Rückseite)
- 2- and 4-wire resistance measurement
- Measure from 250 mV up to 500 Vpp
- >1 GΩ || <20 pF input impedance
- Available with PXI or PXI Express interface
- Fully isolated design
PXM(e)7810 :
The PXM(e)7810 it an innovative “Multi-Measurement Device” (MMD) architecture of VX Instruments combines four different functionalities on a compact plug-in module (1 PXI slot) and thus expands the application possibilities of a classic digital multimeter:
- Digital multimeter
- Oscilloscopes / digitizers
- Timer/counter
- Trigger matrix
The extremely short configuration times of the measuring mode and measuring range significantly reduce the test time. This is particularly important when it comes to fully automated test environments.
With the integrated digitizer functionality, signal curves of up to 10 MS/s can be recorded at a constant 16 Bit resolution. The often common degradation of the resolution at high sample rates, therefore, does not need to be taken into account.
Electronic protection devices on the module increase the robustness of the device and thus the availability when used in an industrial environment.
