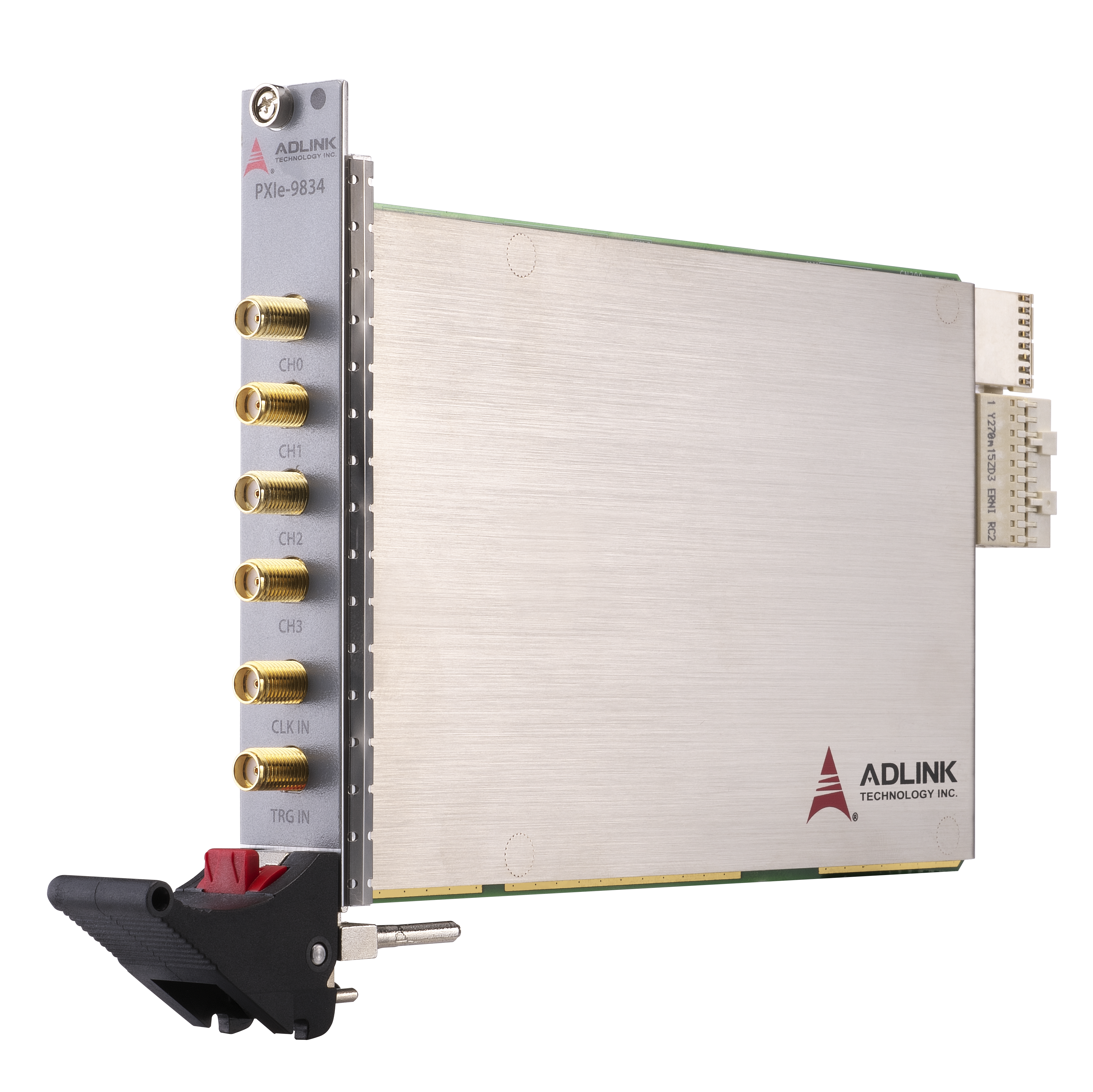

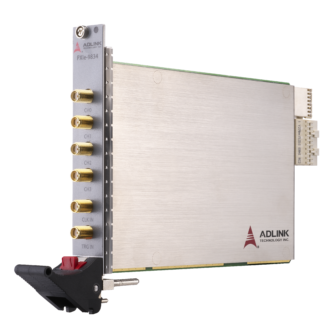

PXIe-9834 - ADLINK 4-Channel Synchronous 16-Bit 80MS/s PXIe Digitizer

PXIe-9834 - ADLINK 4-Channel Synchronous 16-Bit 80MS/s PXIe Digitizer
Main features
  • Up to 80 MS/s sampling and 4 simultaneous analog inputs
  • High resolution 16-bit ADC
  • Bandwidth up to 40 MHz for analog input
  • Programmable input voltage range of ±0.5V, ±1V, ±5V or ±10V
  • DMA Scatter-Gather data transfer for high-speed data streaming
  • 10 or 20 MHz digital integrated filter available (FPGA)
  • Supports external sample clock (20 MHz to 80 MHz) or external reference clock (10 MHz)
  • Full support for automatic calibration

Pxie-9834: ADLINK 4-Channel Synchronous 16-Bit 80MS/s PXIe Digitizer

This PXIe-9834 digitizer features 4 synchronous channels with 16 bit resolution.
The analog bandwidth is 40 MHz and its sampling rate is 80 Me/channel.
Additionally it features a programmable amplifier for input ranges of +/-0.5V; +/-1V; +/-5V and +/-10V
In addition it offers a digital filter at 10 or 20 MHz.
This scanner can work in DMA Scatter-Gather mode which allows continuous access.
Its internal memory is 1 GB.
Finally, this digitizer is perfect for a wide range of applications, including radar signal acquisition, fiber optic detection and power signal analysis.
