| PXI-2501 | 4-CH 12-Bit 1 MS/s Analog Output Multi-Function PXI Module | |
| PXI-2502 | 8-CH 12-Bit 1 MS/s Analog Output Multi-Function PXI Module |

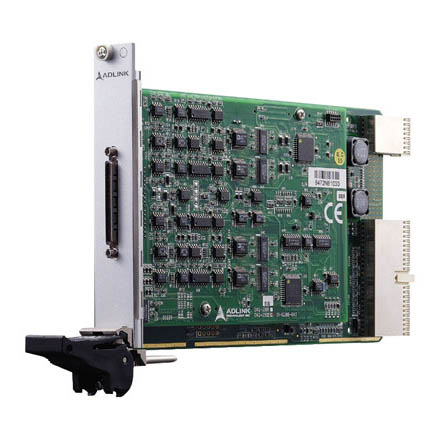

PXI-2500 Series - 4/8-CH 12-Bit 1 MS/s Analog Output Multi-Function PXI modules
Main features
- PXI specifications Rev. 2.0 compliant
- 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R3.0)
- 12-bit D/A resolution
- Up to 1MS/s simultaneous-update rate
- 4-CH multiplying analog outputs (PXI-2501)
- 8-CH multiplying analog outputs (PXI-2502)
- Hardware-based arbitrary waveform generation
- On-board 8k-sample D/A FIFO (PXI-2501)
ADLINIK PXI-2501 and PXI-2502 are high-speed, high-performance analog output multifunction PXI modules. These devices are able to update up to 8-CH, 12-bit analog outputs imultaneously sustaining 1 MS/s. The reference sources and output polarities are programmable individually per channel. Combine this with the multiplying PXI architecture, ADLINK PXI-2500 series PXI modules can generate complex modulated analog signals. The hardware-based arbitrary waveform generation frees CPU intervention even when all analog outputs are updating at full speed, and the lengths of waveforms are only limited by the system memory. The PXI-2500 series integrate up to 8-CH, 400 kS/s, 14-bit single-ended analog inputs with programmable polarity, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counters.
