| PXDe721x | PXI Express interface | |
| PXD721x | PXI interface | |
| Option DVM | Digital Voltmeter | |
| Option T/C | Timer/Counter | |
| Option TCXO | Temperature compensated crystal oscillator | |
| Option DBW | Double bandwidth | |
| Option MEMSEG | Memory segmenting |

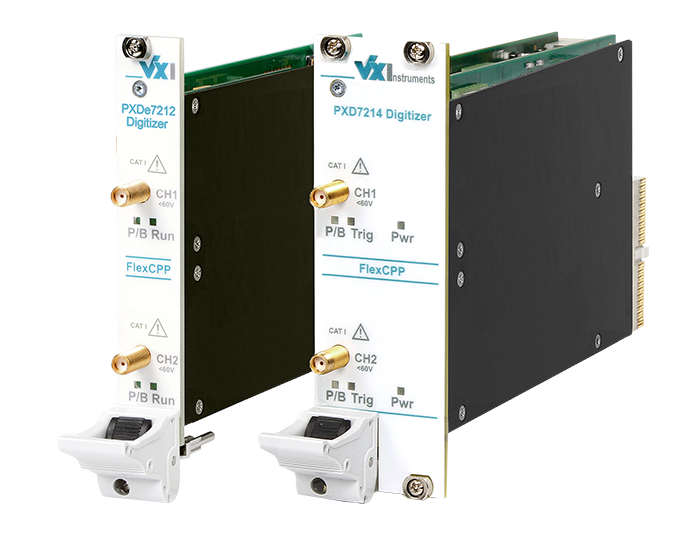

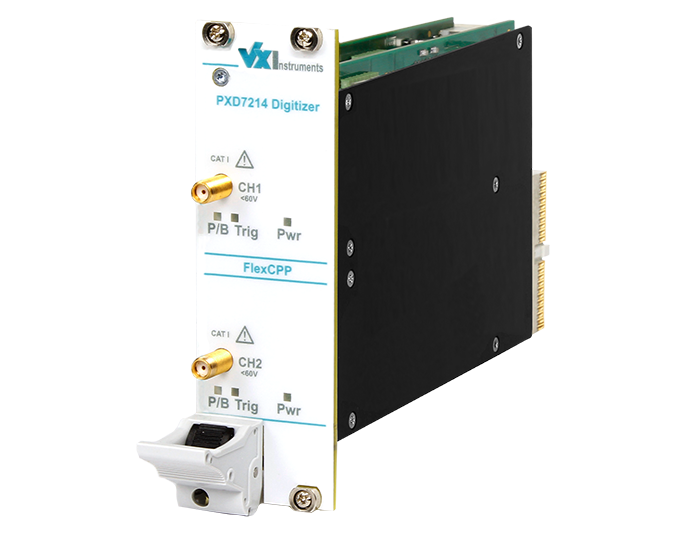

PXD(e)721x - PXI/PXIe Waveform Digitizer Family 120 V and 100 MS/s
Main features
- High input voltage range up to 120 Vpp
- High sampling rate of up to 100 MS/s
- 16 Bit resolution
- PXI or PXIe Interface
- Fully isolated design
- Up to two independent channels
- Built-in timer/counter engine
- Built-in Digital Voltmeter (DVM) function for high precision measurement
- Multiple instrument and channel synchronization possibilities
PXD(e)721x : PXI/PXIe Waveform Digitizer Family 120 V and 100 MS/s
The digitizers of the PXD product family are digital voltage meters and can record voltage curves or even measure single voltages in 1 or 2 channels (DVM function).
They are characterized particularly by the absence of potential in all measuring channels. This allows differential measurements to be carried out with high precision even on high voltage potentials (e.g. high-side measurements). Problems that frequently occur with mass-related measurements are generally avoided.
The very high input impedance and the low input capacitance reduce the influence on the parameter to be measured and thus significantly increase the measuring accuracy. Even high voltages can be captured directly without additional signal conditioning.
A high number of measuring ranges guarantees an optimal resolution of the voltage signal to be measured.
In addition, all digitizers of the PXD series offer an integrated timer/counter function.
