PXCe4012 - 12-Slot PXIe Chassis
Main features
- Compact 19″ design with only 2 U in height
- Save 33% of space compared to a regular 3U PXI Chassis
- 12-slot PXI Express chassis
- Saves space in modern test systems
- Vertical airflow from right to left with an easily replaceable fan unit

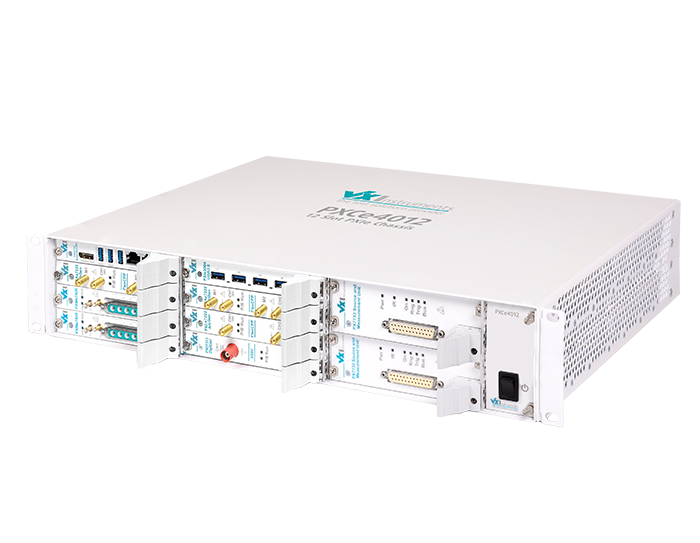

PXCe4012 : 12-Slot PXIe Chassis
The PXI chassis of the PXC family are very space-saving, since the measuring cards are installed horizontally instead of vertically in contrast to the usual PXI chassis. Instead of the usual 4-6 U, only 1/2 U are required in the test system.
Since the cooling of the modules is horizontal, no additional height clearances need to be taken into account during the integration, which leads to a significantly greater compactness.
An integrated trigger card is optionally available for the PXCe4006 6-slot chassis, which simplifies synchronization with external devices and does not require its own peripheral slot.
In addition to the PXI chassis, you will also find a high-performance 1-slot PXI embedded controller in the VX Instruments portfolio.
