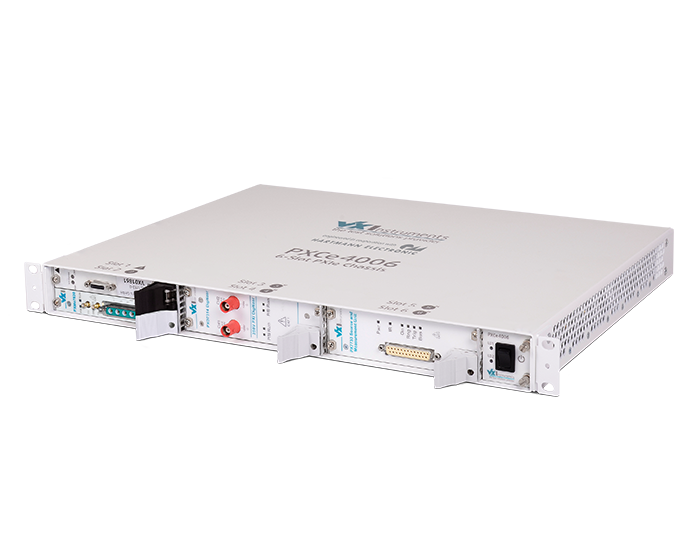

PXCe4006 - 6-Slot PXIe Chassis

PXCe4006 - 6-Slot PXIe Chassis
Clear
Main features
  • Compact 19″ design with only 1 U in height
  • Save 66% of space compared to a regular 3U PXI Chassis
  • 6-slot PXI Express chassis
  • Saves space in modern test systems
  • Optional is a complex FPGA trigger controller with 8 freely configurable trigger IOs on the rear side
  • Vertical airflow from right to left with an easily replaceable fan unit
PXI Express embarqué Contrôleur PXIe3110
PCIe ExpressCard34 (ordinateur portable) PCIe7801
Câble ePCIe ZK1103-0
Câble ePCIe 2 m ZK1104-0
Câble ePCIe 3 m ZK1105-0
Câble ePCIe 7 m ZK1106-0

PXCe4006 : 6-Slot PXIe Chassis

The PXI chassis of the PXC family are very space-saving, since the measuring cards are installed horizontally instead of vertically in contrast to the usual PXI chassis. Instead of the usual 4-6 U, only 1/2 U are required in the test system.
Since the cooling of the modules is horizontal, no additional height clearances need to be taken into account during the integration, which leads to a significantly greater compactness.

An integrated trigger card is optionally available for the PXCe4006 6-slot chassis, which simplifies synchronization with external devices and does not require its own peripheral slot.

In addition to the PXI chassis, you will also find a high-performance 1-slot PXI embedded controller in the VX Instruments portfolio.
