| PSM-2010 | 200W Programmable Dual-Range Linear D.C. Power Supply | |
| PSM-3004 | 120W Programmable Dual-Range Linear D.C. Power Supply | |
| PSM-6003 | 200W Programmable Dual-Range Linear D.C. Power Supply |
PSM-Series - Programmable Dual-Range D.C. Power Supply
Main features
- Single Output Dual Range Max. 200W
- High resolution: 1mV/1mA
- 0.01% load/line regulation, 350uVrms ripple
- Auto step runing with timer setting and 100 Sets memory
- Safety design: OVP,OCP & OTP;Output ON/OFF control
- Self-test and software calibration
- Highly visible vacuum-fluorescent display
- Front and rear output terminal
- Standard interface : RS-232C, GPIB
- Option : European Jack Type Terminal

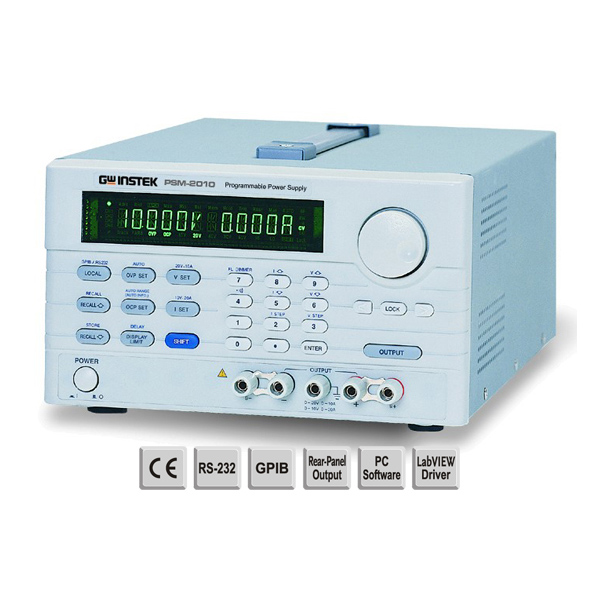

The PSM-Series is single output / dual range, 120W or 200W, programmable linear DC power supplies. OVP, OCP, OTP, and, output On/Off control protect the PSM-Series and their loads from unexpected conditions. High resolution, high regulation, and low ripple are maintained at 1mV/1mA, 0.01%, and <350 Vrms, respectively. Operation and configuration is simplified with a digital interface and a clear LCD display. Standard features include store/recall output memories, automatic stepping with timers for continuous testing and self-testing, and software calibration features to reduce maintenance efforts. SCPI programming, LabVIEW drivers, RS-232C, and GPIB interfaces enable easy automated test system integration and remote control. The PSM-Series is an ideal choice for high precision applications such as QA verification and product development.
