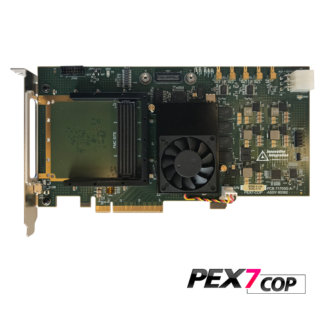

The PEX7-COP is a flexible FPGA co-processor card that integrates a Kintex-7 FPGA computing core with an industry-standard FMC I/O module on a three-quarter-length PCI Express desktop or server card.
The FPGA computing core features the Xilinx Kintex-7 FPGA family and is offered in two densities, K325 or K410. The K410 FPGA provides over 2000 DSP MAC elements operating at up to 500 MHz. The FPGA core has a 2048 MB DDR3 DRAM bank attached.
For system communications, the PEX7-COP utilizes a PCI Express x8 Gen2 port capable of up to 3.2 GB/s sustained operation with 4 GB/s burst rate.
PEX7-COP - PCI Express Coprocessor with Virtex-7 FPGA and FMC IO site
Main features
- Desktop/Server 3/4 full-length FPGA Coprocessor Card
- FMC HPC I/O site (VITA 57) with x8 10.0 Gbps MGT lanes, 80 LVDS pairs (LA, HA, HB full support)
- FPGA Computing Core
- Xilinx Kintex-7 K325 or K410
- Single Bank 256Mb x 64 DDR3 (2048MB total)
- 256Mb BPI Configuration FLASH
- External clock input
- External trigger input supports multi-card synchronization and coordinated sampling
- 1 PPS Input
- 8 lane PCIe Express Gen 2 interface providing 4 GB/s burst and 3.2 GB/s sustained transfer rates
- On-board USB to JTAG programmer allows FPGA programming without external hardware
- 14-pin JTAG header with Xilinx compatible pinout
- < 15W typical power excluding FMC
- x4 Secondary Port usable as PCI Express or Aurora
- Temperature and power monitoring
