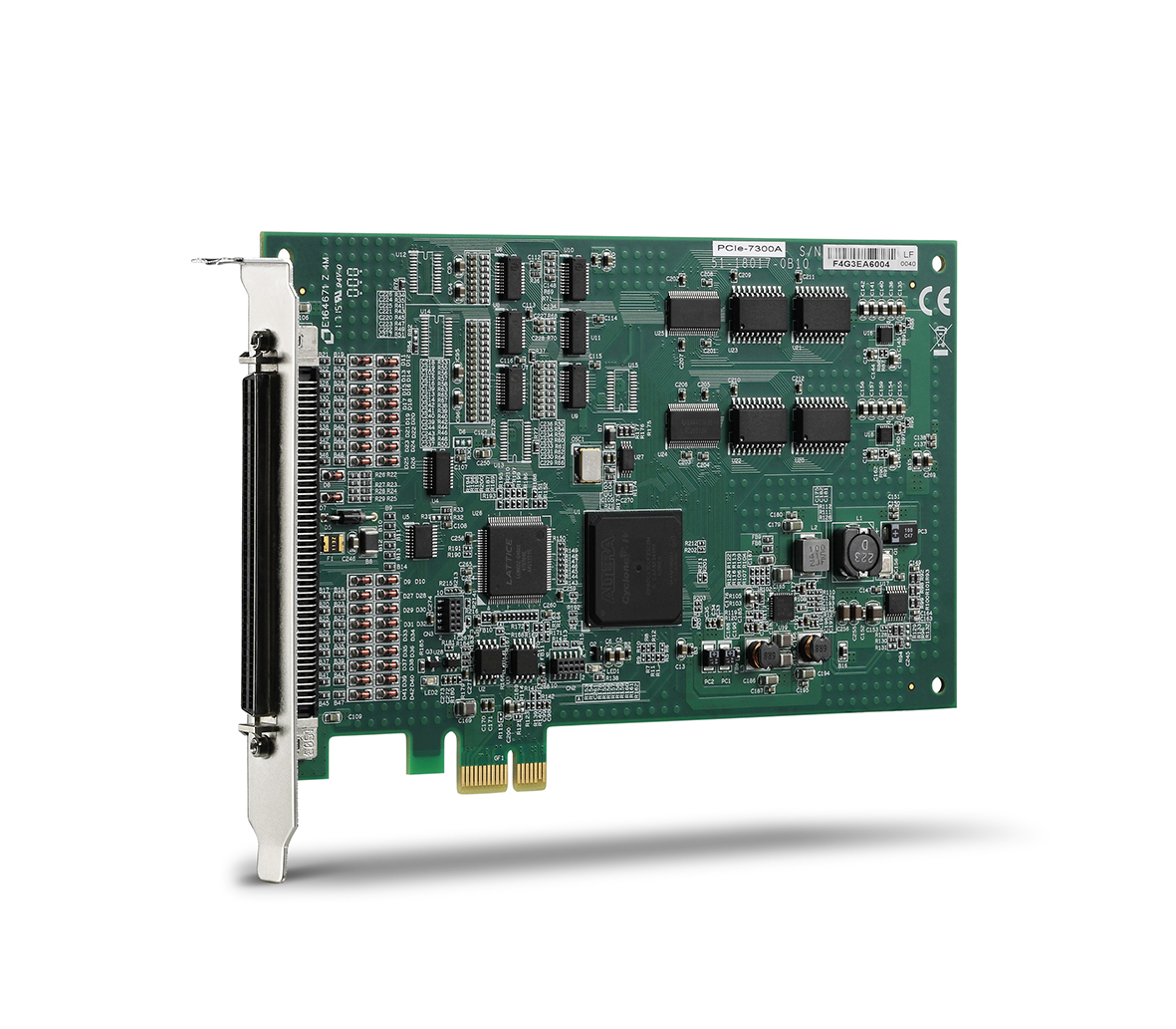

PCIe-7300A - 32-CH 80 MB/s High-Speed Digital I/O Card

PCIe-7300A - 32-CH 80 MB/s High-Speed Digital I/O Card
Main features
  • PCI Express® X1 Interface
  • Plusieurs configurations de ports E/S: 16-CH DI et 16-CH DO, 32-CH DI ou 32-CH DO
  • Taux de transfert de données jusqu’à 80Mo/s
  • Bus-mastering DMA avec technologie scatter-gather
  • Timer interne pour DIO
  • FIFO 32 Kmots
  • Signaux ACK et REQ pour transfert de données
  • PCIe-7300A Rev. C prend en charge le système d’exploitation 64 bits avec plus de 4 Go de mémoire

ADLINK PCIe-7300A is an ultra-high-speed digital I/O card. It consists of 32 digital input/output channels. High performance designs and state-of-the-art technology make this card ideal for a wide range of applications, such as high-speed data transfer, digital pattern generation and digital pattern capture applications, and logic analyzer applications. Trigger signals are available to start the data acquisition of pattern generation.
