ADLINK’s PCIe-7200 are high-speed digital I/O cards consisting of 32 digital input channels, and 32 digital output channels. High-performance designs and the state-of-the-art technology make these cards suitable for high-speed data transfer and pattern generation applications.
The PCIe-7200 performs high-speed data transfers using bus-mastering DMA via 32-bit PCI bus architecture. The maximum data transfer rates can be up to 12 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and handshaking mode. They are very suitable for interfacing high-speed peripherals with your computer system.

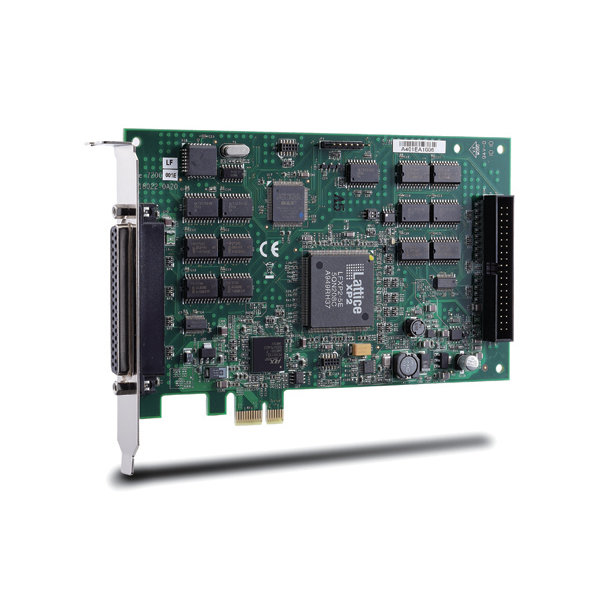

PCIe-7200 - 32-CH DI & 32-CH DO 12 MB/s High-Speed Card
Main features
- Interface PCI Express x1
- 32 entrées TTL et 32 sorties TTL
- Taux de transfert jusqu’à 12 Mo/s
- horloge programmable
- Support le mode de transfert handshaking des E/S numériques
- DMA bus mastering pour les entrées et sorties numériques
- Alimentation 5 V disponible sur les connecteurs
- Compact, demi-taille PCB
