| PCIE-1840 | 80 MS/S, 16-bit, 4-ch Simultaneous Digitizer | |
| PCIE-1840L | 125 MS/S, 16-bit, 4-ch Simultaneous Digitizer |

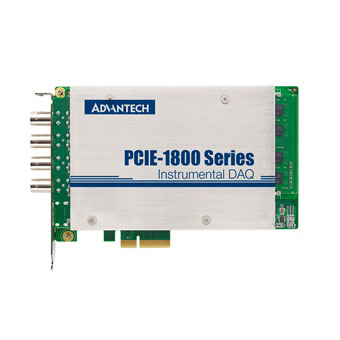

PCIE-1840 - 125/80 MS/S, 16-bit, 4-ch Simultaneous Digitizer
Main features
- 4 simultaneous analog inputs, up to 125MHz, 16-bit resolution
- 500MHz Time Interleaved Sampling
- Non-stop data streaming capable
- 2 GB on-board memory
- 1M or 50 Ohm selectable input impedance
- On-Board tunable anti-aliasing filter
- AC/DC Coupling
PCIE-1840 : 125/80 MS/S, 16-bit, 4-ch Simultaneous Digitizer
The PCIE-1840 high-speed digitizers feature four 125 MS/s simultaneously sampled input channels with 16-bit resolution, 100 MHz bandwidth, and up to 2 GB of memory in a PCIE device.
