PCIE-1802 - 216 kS/s, 24-bit, 8/4-ch PCIE Card for Sound and Vibration

PCIE-1802 - 216 kS/s, 24-bit, 8/4-ch PCIE Card for Sound and Vibration
Clear
Main features
  • 24-bit resolution ADCs with 115 dB dynamic range
  • Wide input ranges from ±0.2 V to ±10 V
  • Software selectable AC/DC coupling
  • Software configurable 4 or 10 mA Integrated Electronic Piezoelectric Excitation (IEPE)
  • Built-in anti-aliasing filter
  • 8 simultaneously sampled analog inputs up to 216 kS/s
  • Multiple card synchronization
  • Full auto-calibration

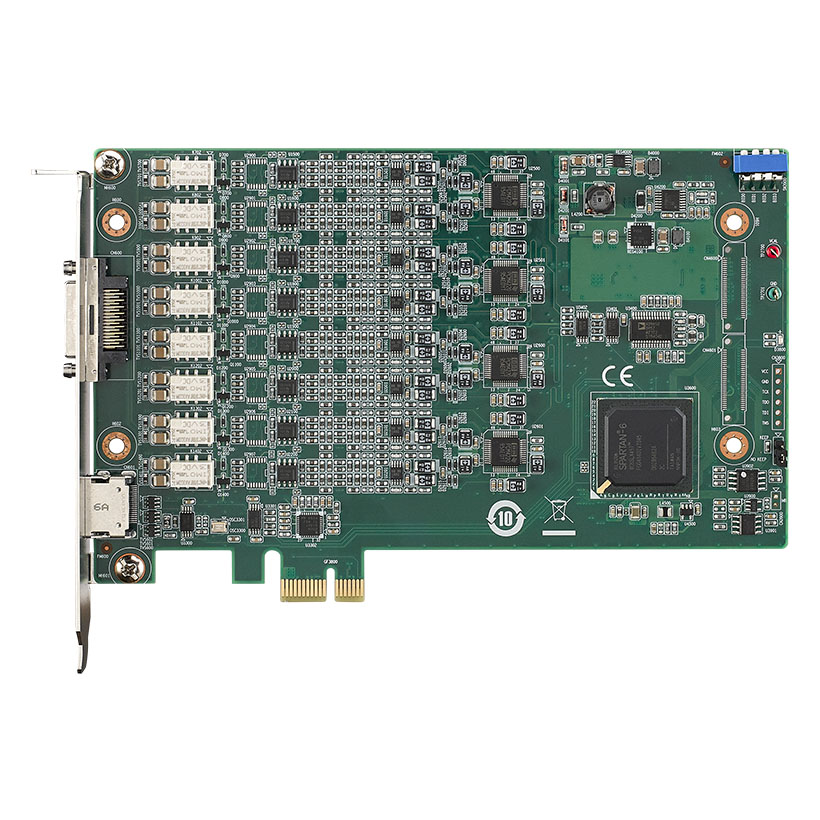

PCIE-1802 216 kS/s, 24-bit, 8-ch PCIE Card for Sound and Vibration
PCIE-1802L 216 kS/s, 24-bit, 4-ch PCIE Card for Sound and Vibration

PCIE_1802 : 216 kS/s, 24-bit, 8/4-ch PCIE Card for Sound and Vibration



The Advantech PCIE-1802 is a 24-bit high-accuracy data acquisition PCI Express module specifically designed for sound and vibration applications. This module has built-in 4 or 10 mA excitation currents for IEPE sensors such as accelerometers and microphones.
