| PCI-6308V | 8-CH 12-Bit Isolated Voltage Output Card | |
| PCI-6308A | 8-CH 12-Bit Isolated Voltage & Current Output Card |

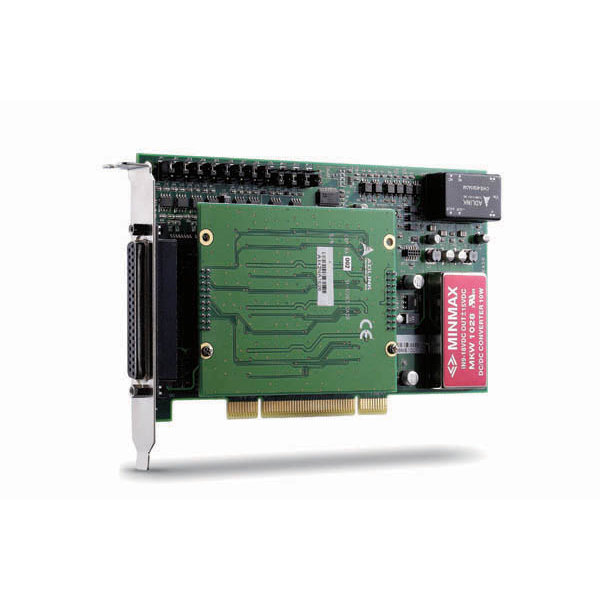

PCI-6308V/PCI-6308A - 8-CH 12-Bit Isolated Analog Output Cards
Main features
- Supports a 32-bit 5 V PCI bus
- Isolated 8-CH 12-bit voltage output
- 2500 VRMS optical isolation
- Jumper selectable bipolar and unipolar output ranges
- 4-CH isolated DI and 4-CH isolated DO
- Current output version available on PCI-6308A
The PCI-6308V is a high-performance 12-bit analog output board with PCI interface. It provides 8 identical voltage output channels, with each channel capable of bipolar voltage outputs, unipolar voltage output and unipolar 0 to user defined voltage output. The PCI-6308V provides good monotonicity, low distortion, and low differential linearity error over long periods of time. The output ranges of the PCI-6308V are bipolar -10 to +10 V, unipolar 0 to 10 V and as well as user-defined ranges with external reference input, which are jumper selectable. The PCI-6308A device is the combination of the PCI-6308V with an 8-CH current output extended board, EXP-8A. The EXP-8A board includes 8 precision voltage-to-current converters.
ADLINK PCI-6308 series devices provide flexible and isolated analog output functionalities and are suitable for ATE, signal generation, industrial process control, servo control and other industrial control applications.
