This product is only available for purchase with a minimum order quantity. Please contact our sales team for more information.

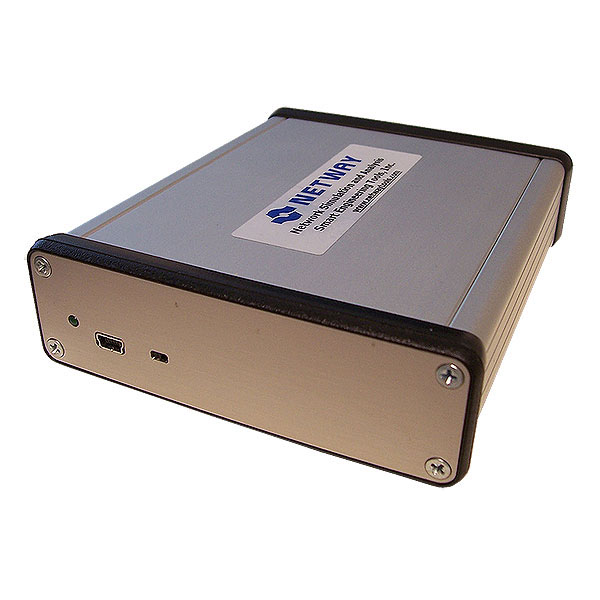

Tool Features :
- CAN: up to ten (10) independent CAN channels
- Selection of transceivers per channel: High-Speed Dual-Wire / Fault-Tolerance / Single-Wire(GMLAN)
- Standard 11-bit and extended 29-bit header
- Supports multi-frame CAN (ISO-15765)
- Supports J2534 with SET32.DLL library
- J1939, J1979, and more
- UART: up to ten (10) independent channels:
- UART protocols – LIN 2.1(1.3), KWP2000, KWP1281, ISO9141-1, ISO9141-2, J1708, J1587, SAEJ1922, etc.
- Selection of transceivers per channel: LIN (K-Line), RS485, RS232, AOS.
- Block transfer support.
- J1850: two independent channels VPW (Class2) and PWM (SCP). Block transfer support.
- IIC: one channel up to 400 Kbits/sec, Master or Slave configuration
- SPI: one channel up to 10 Mbits/sec, Master or Slave configuration
- I/O Outputs are open drain, pull-up maximum to 50V, load maximum 350mA.
- I/O Input signals range 0-15V, 10 bits resolution.
- Emulation script language for real-time networks and signals simulation, worst case resolution less than 1ms for all operations including data logging, network simulations and I/O signal measurement and generation.
- Events triggering by network messages, timers or/and I/O signal transitions
- Stand-alone operations including in-vehicle gateway, end-of-line test, on bench rest of vehicle simulator, data logging, etc. Sleep mode current consumption less than 1mA.
- Log data is preserved by backup battery when power is switched OFF. Capable of logging up to 32,000 messages. Flexible dynamic filtering for data logging.
- When connected to PC unlimited logging and analysis with variety of graphical network signals representation is available. Traffic replay and more.
- Warranty and technical support (free software/firmware upgrades) for one full year from the purchase date
