NETBOX DN2.46x Serie - LXI 16-bit versatile 4/16 channel 200 Ks/s 1 Ms/s or 3 Me/s sampling speed

NETBOX DN2.46x Serie - LXI 16-bit versatile 4/16 channel 200 Ks/s 1 Ms/s or 3 Me/s sampling speed
Clear
Main features
  • 4/16 single ended
  • 4/16 true differential inputs
  • Single-phase or differential inputs via software
  • A separate 16-bit ADC and one amplifier per channel
  • Simultaneous sampling on all channels
  • 8 input ranges: +/- 50 mV up to +/- 10
  • Programmable input shift of +/- 5 V
  • Window, pulse width, reset, tip, OR / AND trigger
  • ENOB up to 15.0 Bit
  • Integrated full calibration circuit
  • GBit Ethernet / LXI compatible instrument
  • Easy connection with BNC / SMA connections
  • SBench 6 Professional included
  • Direct remote access from workstations or laptops
  • Simple integration into the factory LAN



DN2.462-04 LXI 4-channel digitizer 200 Ke / s 16 bits
DN2.462-08 LXI 8-channel digitizer 200 Ke / s 16 bits
DN2.462-16 LXI 16-channel digitizer 200 Ke / s 16 bits
DN2.464-04 LXI 4-channel digitizer 1 Me/s 16 bits
DN2.464-08 LXI 8-channel digitizer 1 Me/s 16 bits
DN2.464-16 LXI 16-channel digitizer 1 Me/s 16 bits
DN2.465-04 LXI 4-channel digitizer 3 Me/s 16 bits
DN2.465-08 LXI 8-channel digitizer 3 Me/s 16 bits
DN2.465-16 LXI 8-channel digitizer 3 Me/s 16 bits

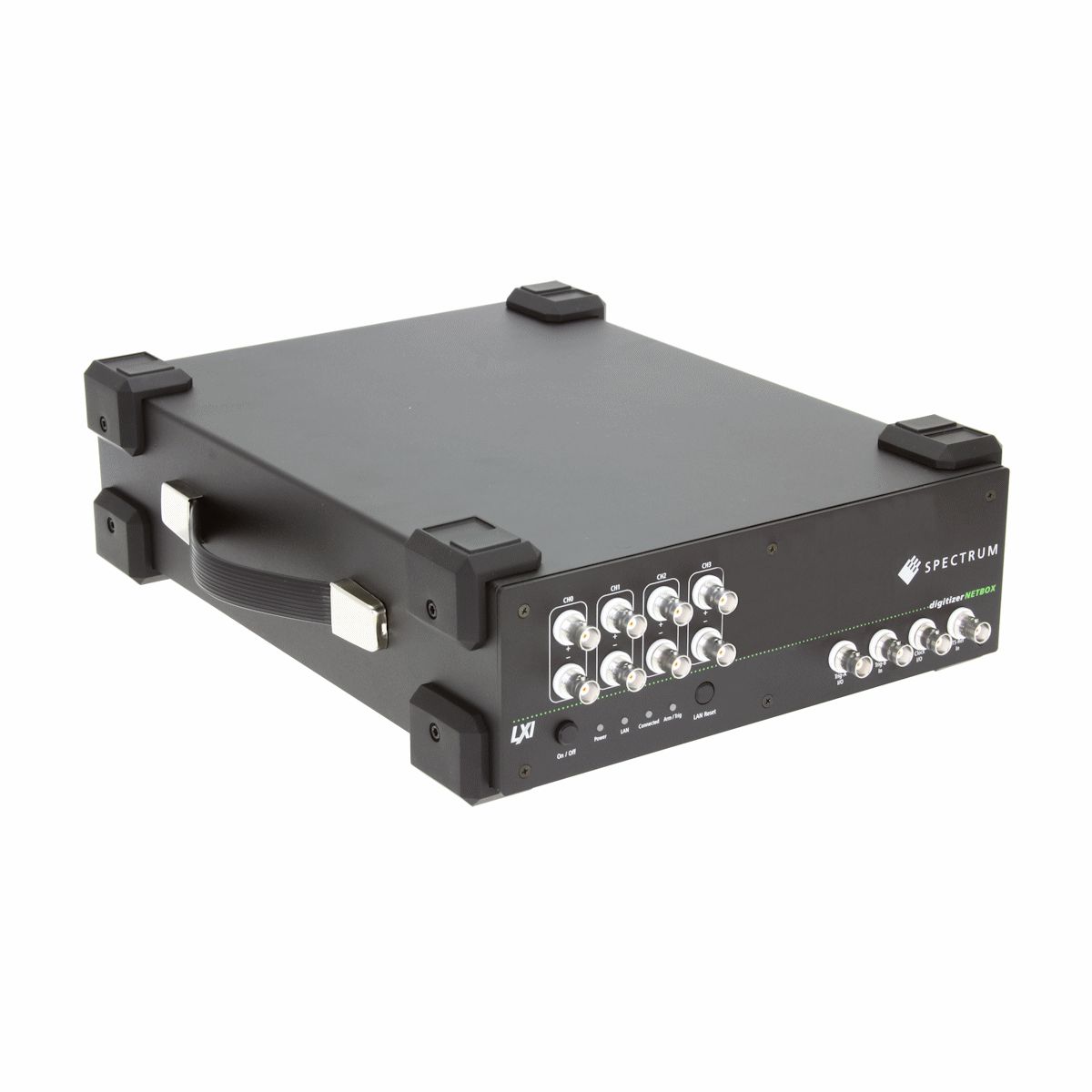

The digitizerNETBOX DN2.46x series allows recording of one, two, four, eight or 16 synchronous channels with sampling rates of 200 kS/s up to 3 MS/s. These products offer outstanding A/D features both in resolution and speed as a remote instrument. The powerful A/D amplifier section offers 8 different input ranges, programmable offset and a software switching from single-ended to differential inputs without decreasing the number of channels.

The digitizerNETBOX and generatorNETBOX offer a powerful GBit Ethernet connection and are fully LXI compatible. The netbox can be used as tabletop instrument or 19″ rack mount operation. It can be connected anywhere in your LAN or directly point-to-point with your Laptop/Workstation. A full option package and software package including SBench 6 Professional is included. The first data acquisition can be done within minutes: connect power + ethernet + signals, swicth on, install software on client PC, detect the digitizerNETBOX/generatorNETBOX with Discovery, start SBench 6, do the first acquisition

ABA Mode

The optional ABA mode combines slow continuous data recording with fast acquisition on trigger events. The ABA mode works like a slow data logger combined with a fast digitizer. The exact position of the trigger events is stored as timestamps in an extra memory.

Ring buffer mode

The ring buffer mode is the standard mode of all acquisition boards. Data is written in a ring memory of the board until a trigger event is detected. After the event the posttrigger values are recorded. Because of this continuously recording into a ring buffer there are also samples prior to the trigger event visible: Pretrigger = Memsize – Posttrigger.

FIFO mode

The FIFO mode is designed for continuous data transfer between the digitizerNETBOX and the host PC. The transfer speed is depending on the Ethernet connection between box and host and is in the region of 40 MB/s to 60 MB/s. The control of the data stream is done automatically by the driver on interrupt request. The complete installed on-board memory is used for buffer data, making the continuous streaming extremely reliable.

External Clock

Using a dedicated connector a sampling clock can be fed in from an external system. It’s also possible to output the internally used sampling clock to synchronize external equipment to this clock.

Reference Clock

The option to use a precise external reference clock (normally 10 MHz) is necessary to synchronize the board for high-quality measurements with external equipment (like a signal source). It’s also possible to enhance the quality of the sampling clock in this way. The driver automatically generates the requested sampling clock from the fed in reference clock.

High Precision PLL

The internal sampling clock of the card is generated using a high precision PLL. This powerful device allows to select the sampling rate with a fine step size making it possible to perfectly adopt to different measurement tasks. Most other cards on the market only allow the setup of fixed sampling rates like 100 MS/s, 50 MS/s, 25 MS/s, 10 MS/s, … without any possibility to set the sampling rate to any value in between.

On-board Calibration

The on-board calibration can be run on user request and calibrates the amplifier against a dedicated internal high precision calibration source. After this calibration data is stored permanently in an on-board EEPROM and is automatically used for further acquisitions.

Programmable Input Amplifiers

The analog inputs can be adapted to real world signals using individual settings for each channel. A large number of different input ranges and a programmable input offset allow to adopt perfectly to the real world signals.

Synchronous Sampling

All acquisition cards from Spectrum are built with a completely synchronous design. Every channel has its own independent input amplifier as well as an independent ADC allowing to program all input channel related settings individually for each channel.

Differential Inputs

With a simple software command the inputs can individually be switched from single-ended (in relation to ground) to differential, without loosing any inputs. When the inputs are used in differential mode the A/D converter measures the difference between two lines with relation to system ground.

Programmable Input Offset

Most of the Spectrum A/D cards offer a user programmable signal offset opening the Spectrum boards to a wide variety of setups. The signal offset at least covers a range of +/-100 % of the currently selected input range making unipolar measurements with the card possible. Besides this the input range offset can be programmed individually allowing a perfect match of the A/D card section to the real world signal.
