Nano-10GE - Dual, 10 GbE Network Interface for ePC-nano

Nano-10GE - Dual, 10 GbE Network Interface for ePC-nano
Main features
  • Two independent 10GBASE-T interfaces with SR-IOV support
  • 10 GbE/1 GbE/100 Mb/s copper PHYs integrated on-chip
  • PCIe 2.1 (2.5GT/s or 5GT/s), Bus width — x1, x2, x4
  • Support for jumbo frames of up to 15.5 KB
  • Flow control support: send/receive pause, frames and receive FIFO thresholds
  • TCP segmentation offload: up to 256 KB
  • IPv6 support for IP/TCP and IP/UDP receive
  • Checksum offload, Fragmented UDP checksum offload for packet, reassembly
  • Message Signaled Interrupts (MSI), Message Signaled Interrupts (MSI-X)
  • Interrupt throttling control to limit maximum, interrupt rate and improve CPU usage
  • 128 transmit queues
  • Receive packet split header, Receive header replication
  • Dynamic interrupt moderation, DCA support, TCP timer interrupts, No snoop
  • Relaxed ordering (Note: module NIC requires enumeration and control via ePC-nano PCIe root master)

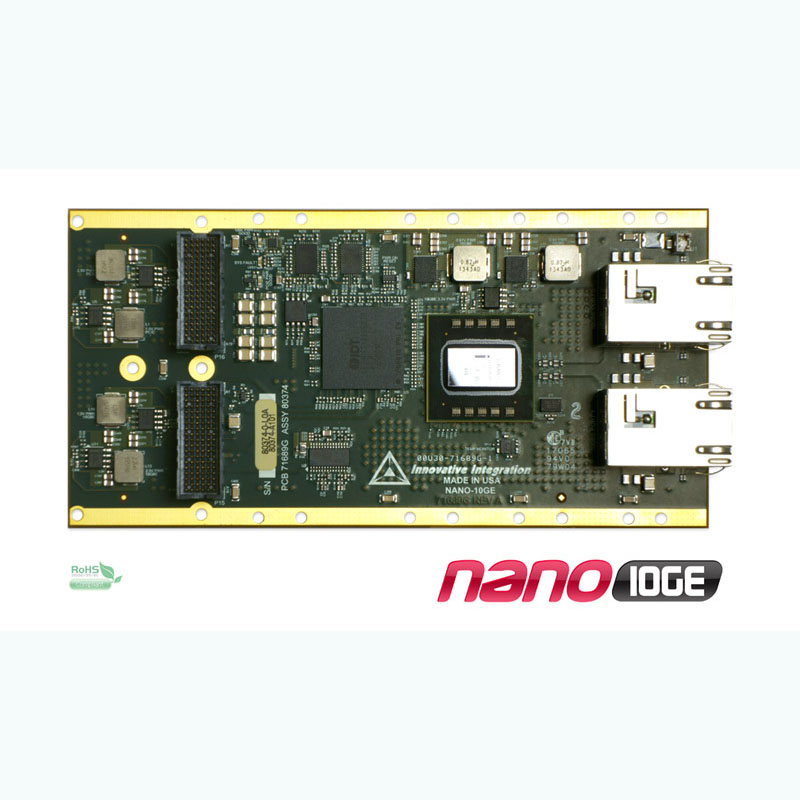

Nano-10GE provides two 10 Gigabit Ethernet (GbE/GE) ports for the ePC-nano system. Two 10GbE-capable RJ45 connectors support connection to standard CAT6e networks providing high-speed connectivity to PCs, servers embedded computers such as Innovative’s ePC products or custom, intelligent IO. Up to 15 Gbps full aggregated burst rate is achievable when using both RJ45 jacks (up to 10 Gbps in a single port mode operation).
The two 10GE ports are fully independent on the module. The Nano-10GE plugs into the ePC-nano board; an XMC module can be plugged into the standard XMC connectors on the Nano-10GE board; in this configuration the ePC-nano system supports the full XMC board functionality with added benefit of a high-speed network connectivity.
The NANO-10GE works with legacy Gigabit Ethernet (GbE) switches and Cat 6A cabling. When installed in ePC-nano system, the auto-negotiation between 1 GbE and 10 GbE provides a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added to your network to experience the full benefits of 10 GbE.
Software libraries and examples for C++ host development are provided. Application examples demonstrating the module features are provided for Innovative Integration platforms in for Windows and Linux.
