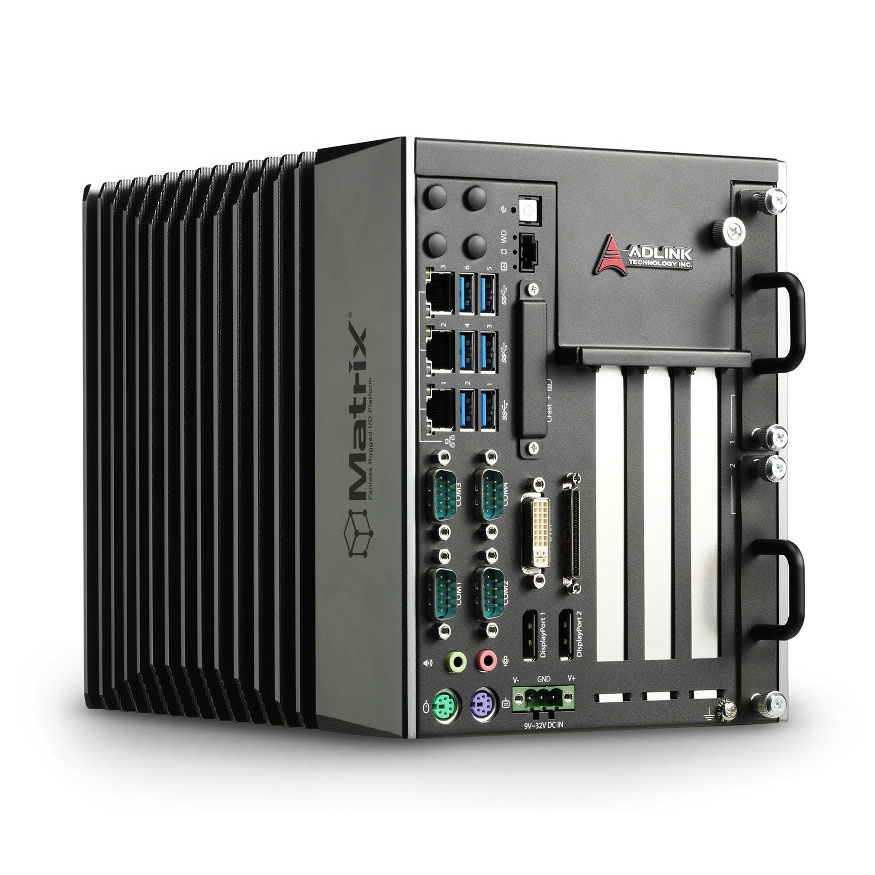

MXC-6400 - High-Performance 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer

MXC-6400 - High-Performance 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer
Clear
Main features
  • 6th Generation Intel® Core™ i7/i5/i3 Processors and QM170 chipset
  • 2x DDR4 SO-DIMM sockets support up to 32GB memory
  • 1x PCI and 2x PCIe Gen3 x8 (or 1x PCIe Gen3 x16) slots
  • 2x Mini PCIe and 1x USIM slots
  • Support for 3 independent displays with 2x DisplayPort and 1x DVI-I ports
  • 3x Intel® GbE LAN ports with teaming function, Intel® iAMT 11.0
  • 2x 2.5″ hot-swappable SATA III (6.0 Gb/s) trays on the front panel and 2x internal SATA III (6Gb/s) ports with RAID 0/1/5/10 support
  • Remote power on/off switch connector on the front panel
MXC-6401D/M8G PC Fanless, Intel Skylake-H Core i7 CPU+QM170, 1PCI+2PCIe x8, DDR4 8 Go 2622 €
MXC-6401D/M4G PC Fanless, Intel Skylake-H Core i7 CPU+QM170, 1PCI+2PCIe x8, DDR4 4 Go 2568 €
MXC-6401D/M16G PC Fanless, Intel Skylake-H Core i7 CPU+QM170, 1PCI+2PCIe x8, DDR4 16Go 2733 €
MXC-6402D/M8G PC Fanless, Intel Skylake-H Core i5 CPU + QM170, 1PCI+2PCIe x8, DDR4 8 Go 2382 €
MXC-6402D/M4G PC Fanless, Intel Skylake-H Core i5 CPU+QM170, 1PCI+2PCIe x8, DDR4 4Go 2327 €
MXC-6400-PS Powe supply AC-DC 160 W 80 €
MXC-6400-OPT Option hard disk or SSD and option OS to consult us
The Matrix MXC-6400 series is a line of high-performance fanless embedded computers, integrating 6th generation Intel® Core™ i7/i5/i3 processors and the QM170 chipset for more powerful computing and graphics performance with minimal power consumption.

Features include 3 PCI/PCIe expansion slots allowing installation of a variety of off-the-shelf PCI/PCIe cards for configurable applications, 2 internal mPCIe, and 1 USIM slot for 3G communication. In addition, the MXC-6400 series offers independent digital display support from DisplayPort and DVI-I with HD 4K resolution, as well as 6 USB 3.0 and 3 GbE LAN ports with Intel® iAMT 11.0 and teaming function. The two hot-swappable SATA III ports support 2.5″ storage in the front panel with high speed SATA 6.0 Gb/s and two onboard SATA III internal ports carry RAID 0, 1, 5, 10 support. Optional 16 channel isolated DI/O with digital filter meets the needs of general purpose industrial automation.

With its compact construction, flexibility, and rich I/O capacity, the MXC-6400 is an ideal choice for a wide range of applications supporting factory and machine automation, surveillance, railway and maritime automation, and in-vehicle transportation systems.

ADLINK’s Matrix MXC-6400 series of rugged fanless embedded computers support Intel® Solid State Drive (SSD) E 5400s Series, offering a power-conserving solution with superior durability, performance and security across a variety of applications.

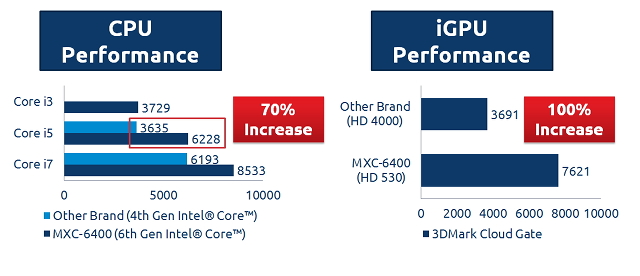

Leading Performance

The MXC-6400 Series’ 6th generation Intel® Core™ i7-6820EQ/ i5-6440EQ/ i3-6100E processors boost computing power by up to 70%, delivering 100% faster graphics performance than previous Matrix generations, up to 3 independent displays are supported, accelerated HW media codecs enable Ultra HD 4K, dual-channel DDR4 2133MHz SO-DIMM sockets accommodate up to 32GB of memory, and PCI and 2 PCIe Gen3 x8 (or 1 PCIe Gen3 x16) slots fully optimize expansion.mxc-6400_highlight_01_640x276

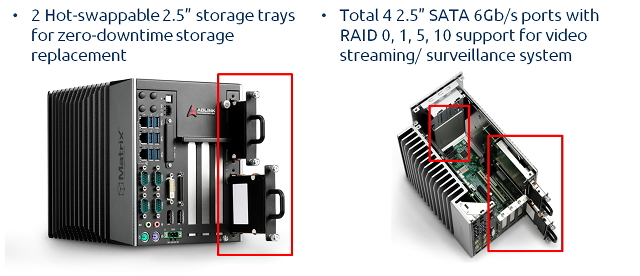

High Storage Density

ADLINK’s MXC-6400 Series is equipped with 4x 2.5″ SATA III installation capability with RAID 0/1/5/10 support, via 2 hot-swappable 2.5″ SATA III trays and 2 internal 2.5″ SATA III ports, and 1 CFast socket. Storage maintenance burdens are relieved, and massive, flexible storage capacity combines with built-in data security to better empower intelligent transportation systems and niche IA markets.

mxc-6400_highlight_02_640x276

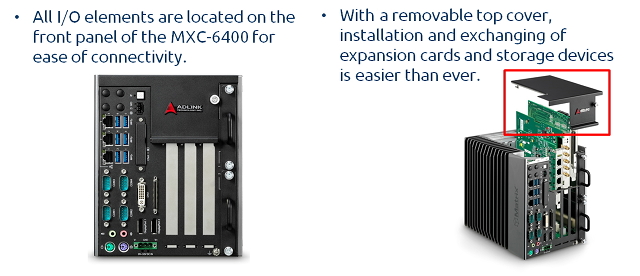

Easy Maintenance

ADLINK’s MXC-6400 Series simplifies such ownership tasks as installation and maintenance with a front-mounted I/O array providing support for up to 3 independent displays via 2 DisplayPort and 1 DVI-I ports enabling up to 4K UHD resolution, 2 software-programmable RS-232/422/485 + 2 RS-232 ports, 3 Intel® GbE ports with teaming function, 6 USB 3.0 ports, and 16CH DI and 16CH DO.

mxc-6400_highlight_03_640x276

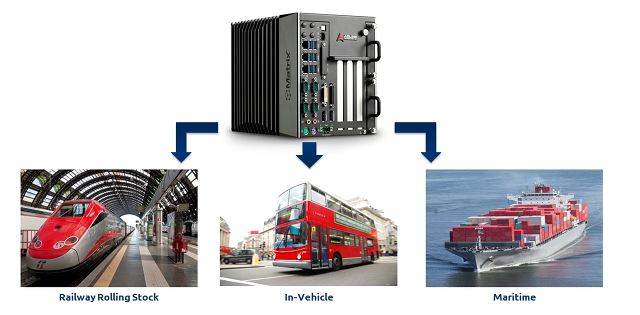

Smart Choice for Intelligent Transportation System

The MXC-6400 Series delivers an optimal solution for intelligent transportation operations such as passenger information system and CCTV systems for rail transport and maritime control centers. 4x 2.5″ SATA capability meets the large storage challenges of media streaming and surveillance content, and 4K UHD resolution support via DisplayPort delivers crystal clear imagery as required by high-res maritime navigation systems. Fanless rugged construction withstands up to 50G shock and 5Grms vibration and operating temperatures of -20°C to 70°C (with industrial SSD or CFast), for reliable 24/7 operation in the most demanding environments. Rigorous operational verification testing assures the reliability and ruggedness critical for complete functionality in harsh industrial environments.

mxc-6400_highlight_04_640x315
