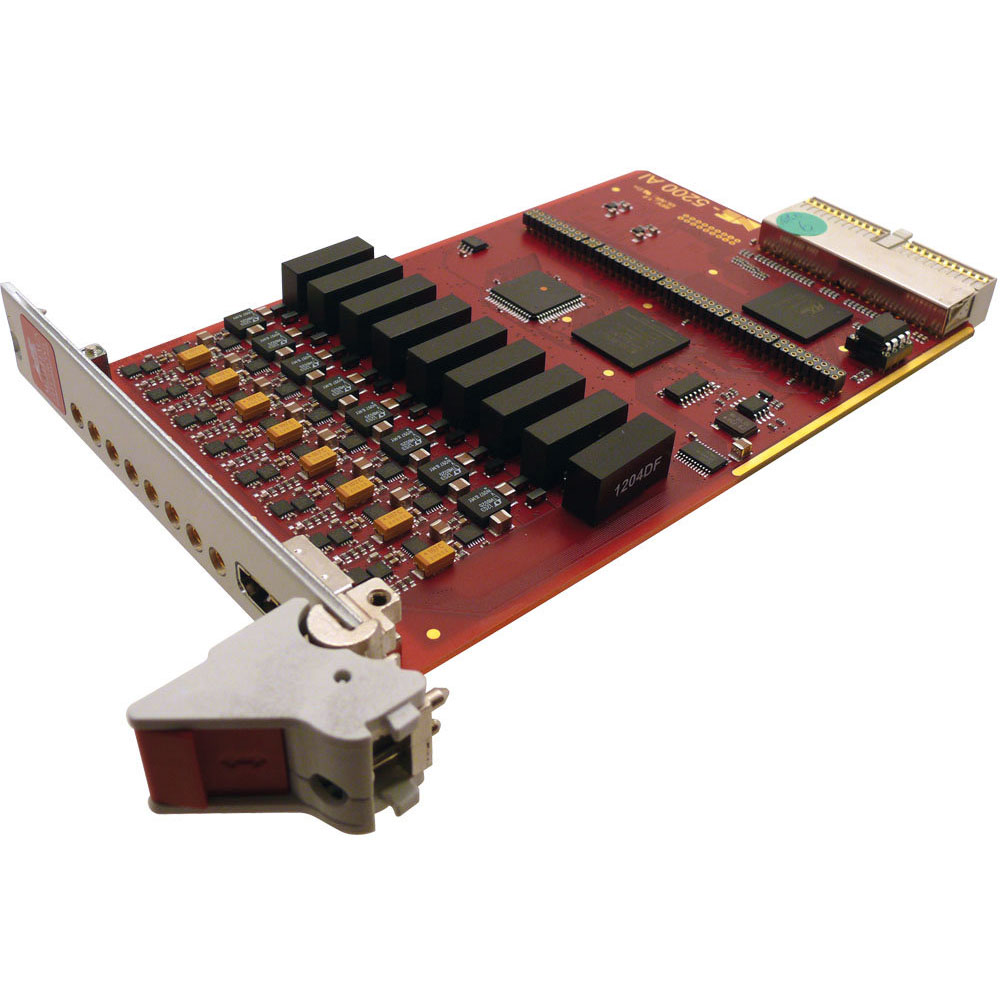

ME-5265-cPCI -
Main features
  • Reliable, precise measurement data acquisition.
  • Potential-free, isolated, full differential channels: Ideal solution for measurement of solar cells, batteries, rechargeable batteries, fuel cells, etc.
  • For PCI-Express and 3 U CompactPCI/PXI.
  • 4 or 8 analog measurement inputs:
    • Differential, potential-free, isolated up to 500 V (for 1 s, no common GNDs).
    • Range ±10.4 V. Two external digital triggers.
  • High-precision A/D conversion, 16 bit, 2 MS/s.
    • Individual SAR converter per channel.
  • MMCX connectors (optional terminal board with BNC). Connection of probes, for example for high voltage measurements.
  • 8 digital-I/O channels with variable functions:
    • Standard single-I/O or 4-channel frequency measurement, 4-channel frequency output.
    • Bitchange detection with interrupt.

The ME-5265 is a fast, highprecision analog DAQ board with 4 or 8 isolated, differential inputs. Every channel has an individual A/D converter. The resolution is 16 bit with rates up to 2 MS/s.

Options

  • Option -T “Probe”: Input resistance Ri=1 MOhm for the channel(s) of your choice.
  • Option -E “Extended”: Extended input range ±104 V, Ri=200 kOhm. Option for all the 8 channels of a board.
