| GPS-2303 | 180W, 2-Channel, Linear D.C. Power Supply | |
| GPS-3303 | 195W, 3-Channel, Linear D.C. Power Supply | |
| GPS-4303 | 200W, 4-Channel, Linear D.C. Power Supply |

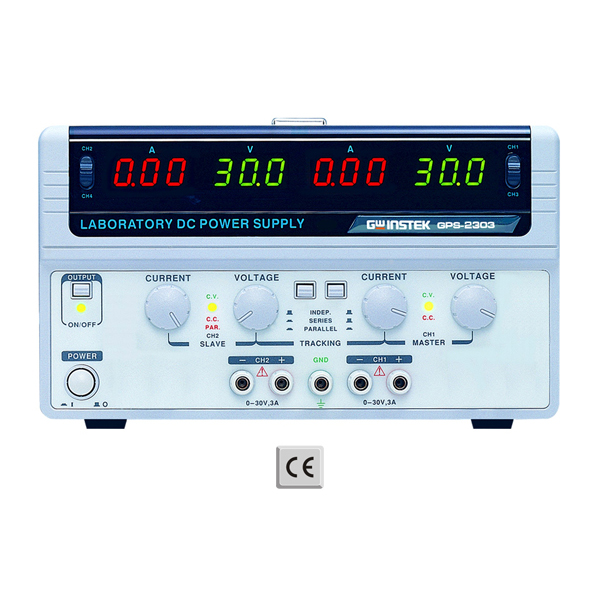

GPS-x303 Series - Multiple Output Linear D.C. Power Supply
Main features
- 4 Independent Isolated Output
- Four “3 Digits” LED Displays
- 0.01% Load and Line Regulation
- Low Ripple and Noise
- Tracking Operation and Auto Series/Parallel Operation
- Output ON/OFF Switch
- Output Voltage and Current Setting When Output Disable
- Fan Speed Control Circuit to Minimize Fan Noise
- Over Load and Reverse Polarity Protection
- Optional European Jack Type Terminal
The GPS-Series is 2-4 channel, 180 to 200W output, linear DC power supplies. Overload and reverse polarity protection, and an output on/off switch keep the GPS-Series and their load safe from unexpected conditions. A High regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are maintained for channel 1 and 2 in constant voltage mode. Automated cooling fan speed control minimizes fan noise according to load conditions, ensuring quiet operation. The GPS-Series is an ideal solution for lightweight, inexpensive bench-top or portable applications requiring high regulation and multiple outputs.
