The GDM-8245 is an economical bench-top DMM equipped with a rich set of features. The GDM8245 has similar functions to those of GDM-8246, but with slightly reduced DCV accuracy and no communication interface. The large 7 segment LED dual display features up to 50,000 counts and the ability to show two measurements at once: ACV plus frequency or dBm, DCV plus dBm or ACV ripple. The GDM-8245 carries an extensive list of measurement items – DC Voltage/Current, AC Voltage/Current with true RMS, Resistance, Capacitance, Frequency, Continuity (with beeper), Diode Test, and dBm. Additional measurement functions, such as Max/Min, Hold and Relative value. With great range, good accuracy and ability to accept up to 20A of current, the GDM-8245 is the perfect general purpose DMM.

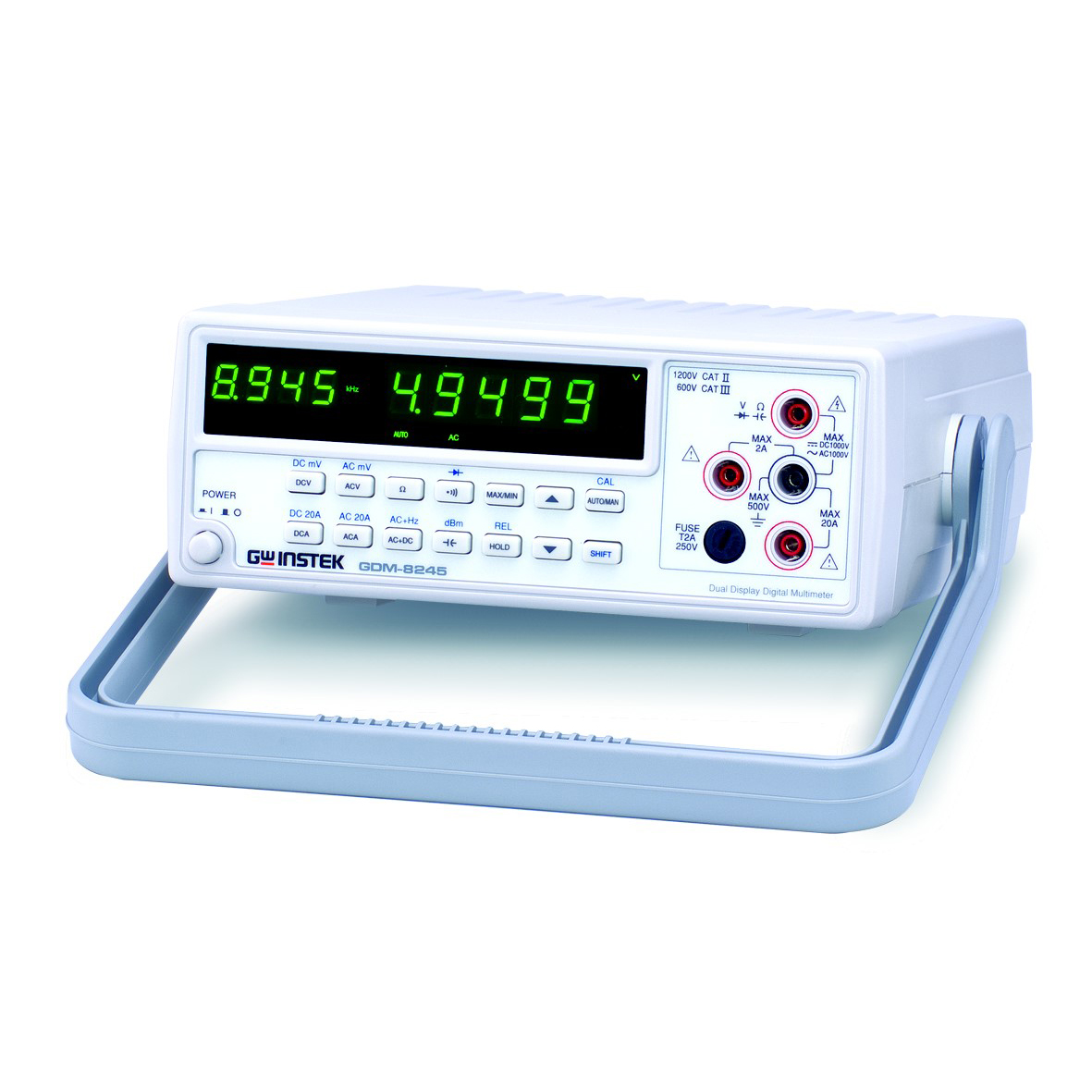

GDM-8245 - Dual Display Digital Multimeter
Main features
- 50000 Counts Display
- Multi-Function : ACV, DCV, ACA, DCA, R, C, Hz, Continuity Beeper, Diode, Test, Max/Min, REL, Hold, dBm
- Dual Display Indicate ACV and Hz,or DCV(ACV) and dBm
- Manual or Auto Ranging
- 0.03% DCV Accuracy
- ACV Measuring Frequency Up to 50kHz
- AC True RMS or AC + DC True RMS
