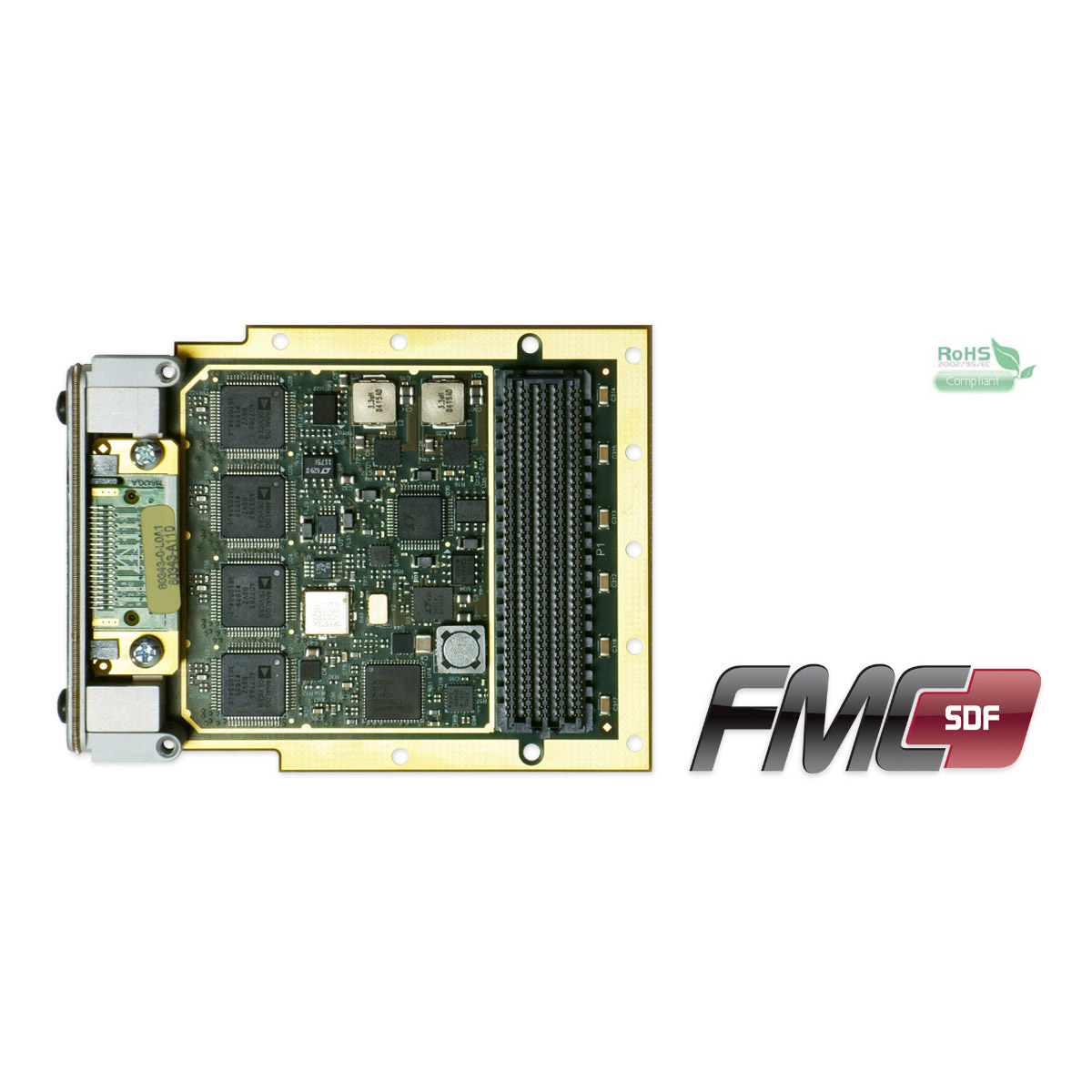

The FMC-SDF module features four simultaneously sampling ADCs and DACs with an FPGA computing core. High resolution sigma-delta ADCs and high resolution DACs support high dynamic range applications such as audio, ATE, and seismic data acquisition.
Clock and trigger controls include support for consistent servo loop timing, counted frames, software triggering and external triggering. The sample rate clock is either an external clock or on-board programmable PLL clock source
The FMC-SDF power consumption is 15 W for typical operation. The module may be conduction cooled using VITA20 standard and a heat spreading plate. Ruggedization levels for wide-temperature operation are available from -40 to +85C operation and 0.1 g2/Hz vibration. Conformal coating is also available.
Support logic in VHDL is provided for integration with FPGA carrier cards. Specific support for Innovative carrier cards includes integration with Framework Logic tools that support VHDL and Matlab developers. The Matlab BSP supports real-time hardware-in-the-loop development using the graphical block diagram Simulink environment with Xilinx System Generator for the FMC integrated with the FPGA carrier card.
Software tools for Innovative carrier cards include host development C++ libraries and drivers for Windows and Linux, 32/64-bit including RTOS variants. Application examples demonstrating the module features are provided.
*Sampling rates in an application depend on carrier and system design.
