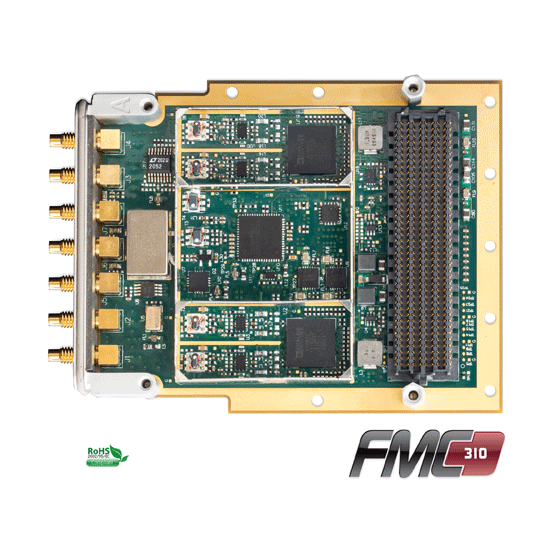

FMC-310 - FMC Module with 4x 310 MSPS 16-bit A/D with PLL and Timing Controls

FMC-310 - FMC Module with 4x 310 MSPS 16-bit A/D with PLL and Timing Controls
Main features
  • Four A/D Inputs
    • 310 MSPS, 16-bit
    • AC or DC coupled
  • Sample clock generation & controls
    • External clock/reference input
    • Programmable PLL
    • 20 MHz, 0.5 ppm reference
    • Integrated with FMC triggers
  • FMC module, VITA 57.1
    • High Pin Count – no SERDES required
    • Compatible with Vadj 2.5V
    • Power monitor and controls
  • 10W typical (AC-coupled inputs)
  • Conduction cooling per VITA 57.1 subset
  • Environmental ratings for -40 to +70C
  • 9g RMS sine, 0.1g^2/Hz random vibration

The FMC-310 is a high speed digitizing and signal generation FMC IO module featuring four 310 MSPS A/D channels supported by sample clock and triggering features.

Analog IO may be either AC or DC coupled. Receiver IF frequencies of up to 155 MHz are supported. The sample clock is from either an ultra-low-jitter PLL or external input. Multiple cards can be synchronized for sampling.

The FMC-310 power consumption is 6W for typical operation. The module may be conduction cooled using VITA20 standard and a heat spreading plate. Ruggedization levels for wide-temperature operation from -40 to +85C operation and 0.1 g2/Hz vibration. Conformal coating is available.

Support logic in VHDL is provided for integration with FPGA carrier cards. Specific support for Innovative carrier cards includes integration with Framework Logic tools that support VHDL/Verilog and Matlab developers. The Matlab BSP supports real-time hardware-in-the-loop development using the graphical block diagram Simulink environment with Xilinx System Generator for the FMC integrated with the FPGA carrier card.
