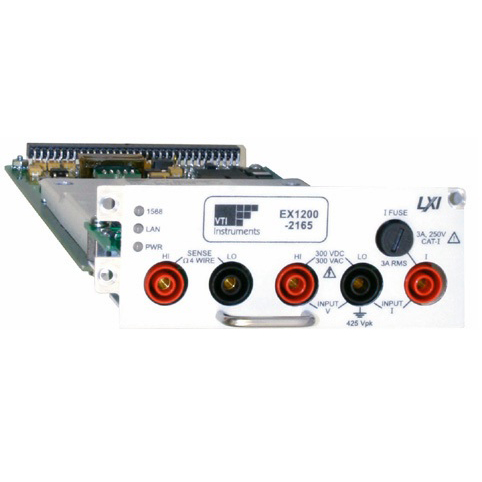

EX1200-2165/2365 - Full Featured, Tighly Integrated 6.5 Digits DMM for EX1200 Mainframes 1U and 3 U
Main features
- Modular 6.5 digit DMM for EX1200 mainframes 1U (EX1206A and EX1202A) and 3U EX1208A
- Tightly integrated into mainframes, allowing high-speed, synchronized scanning measurements without the need for external cabling.
- Input can be routed directly to the DMM or through an internal analog bus on the backplane
- Superfast scanning with no processor intervention required
- Scanning configuration can be saved in the DMM’s non-volatile memory allowing quick recall of saved states
- Integrating ADC for with adjustable integration time depending on the level of accuracy required
- “True RMS” AC readings
- Supports frequency and temperature (thermocouple, RTD and thermistor) measurements
With the EX1200-2165 (EX1202A or EX1206A) or EX1200-2365 (EX1208A) installed, EX1200 mainframes become a cost-effective, high-density, scanning measurement and control instrument capable of acquiring data from thermocouples, RTDs, thermistors, and voltage/current sensors at rates up to 1000 samples per second.
Plug-in switch/multiplexer modules are used to expand the number of channels that can be scanned in a single system. The EX1200-2165 or EX1200-2365 are tightly integrated into the EX1202A , EX1206A and EX1208A through an internal 5-wire analog bus. This allows high-speed, synchronized scanning measurements without the need for external cabling or processor intervention. Up to 576 2-wire channels can be scanned using a single 1U mainframe
