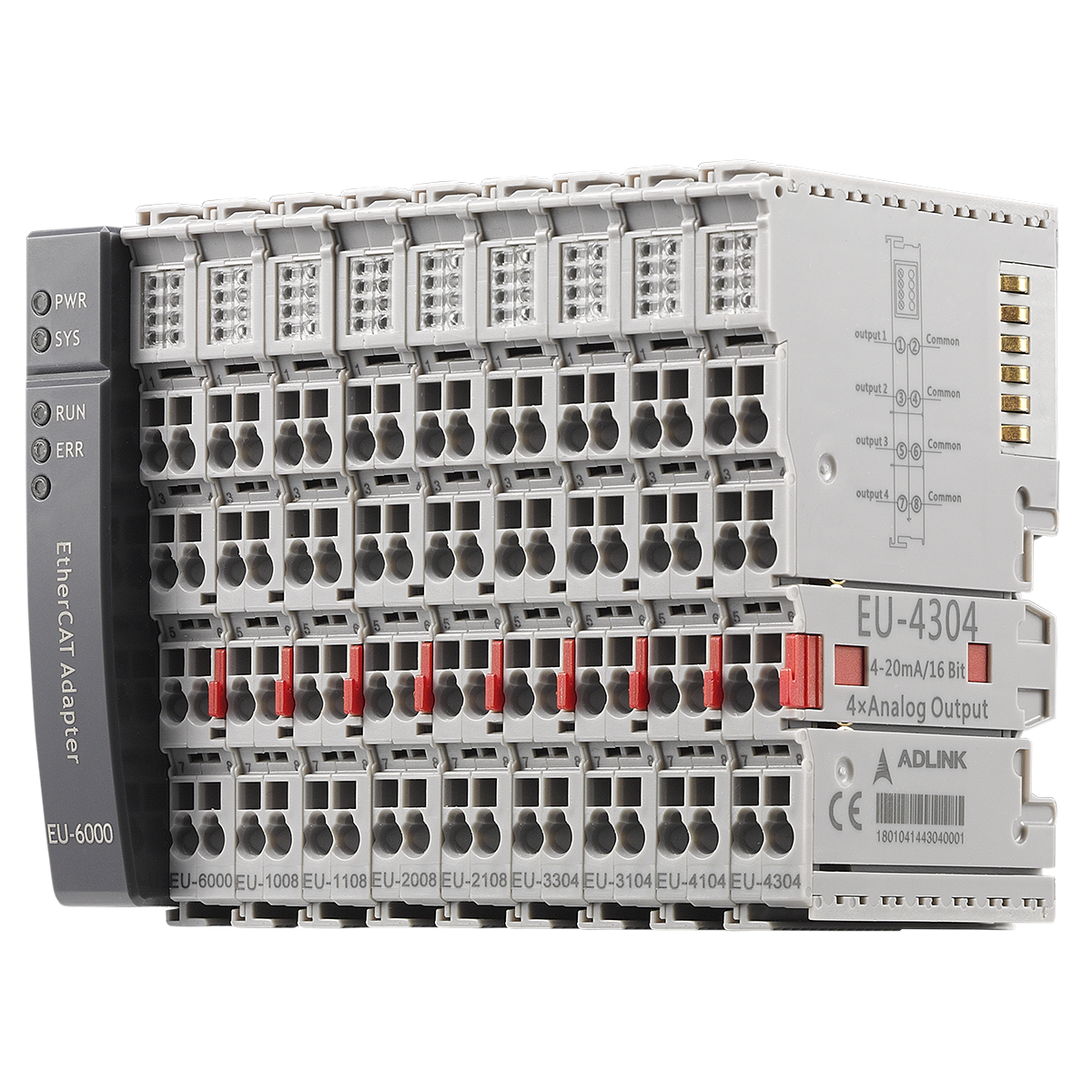

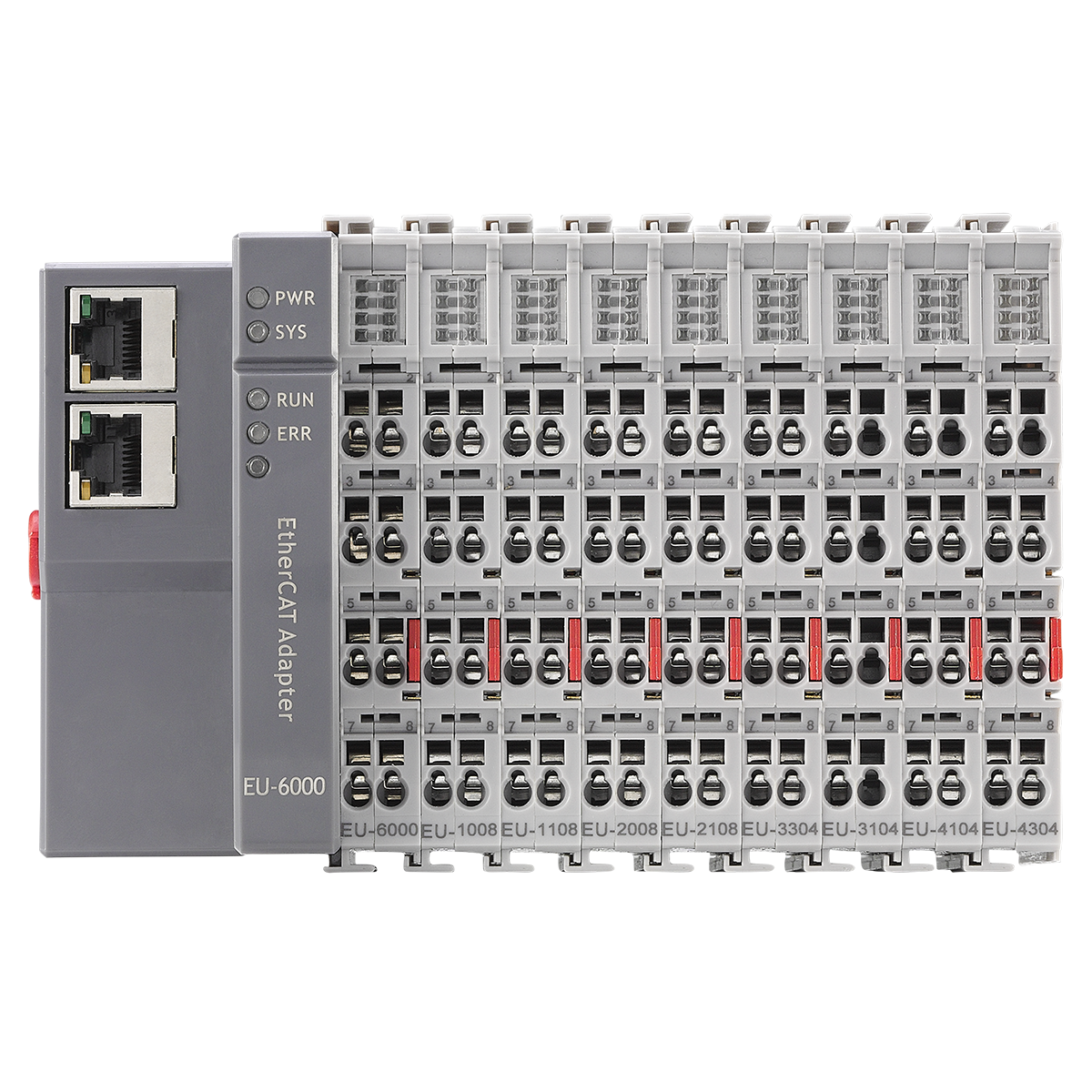

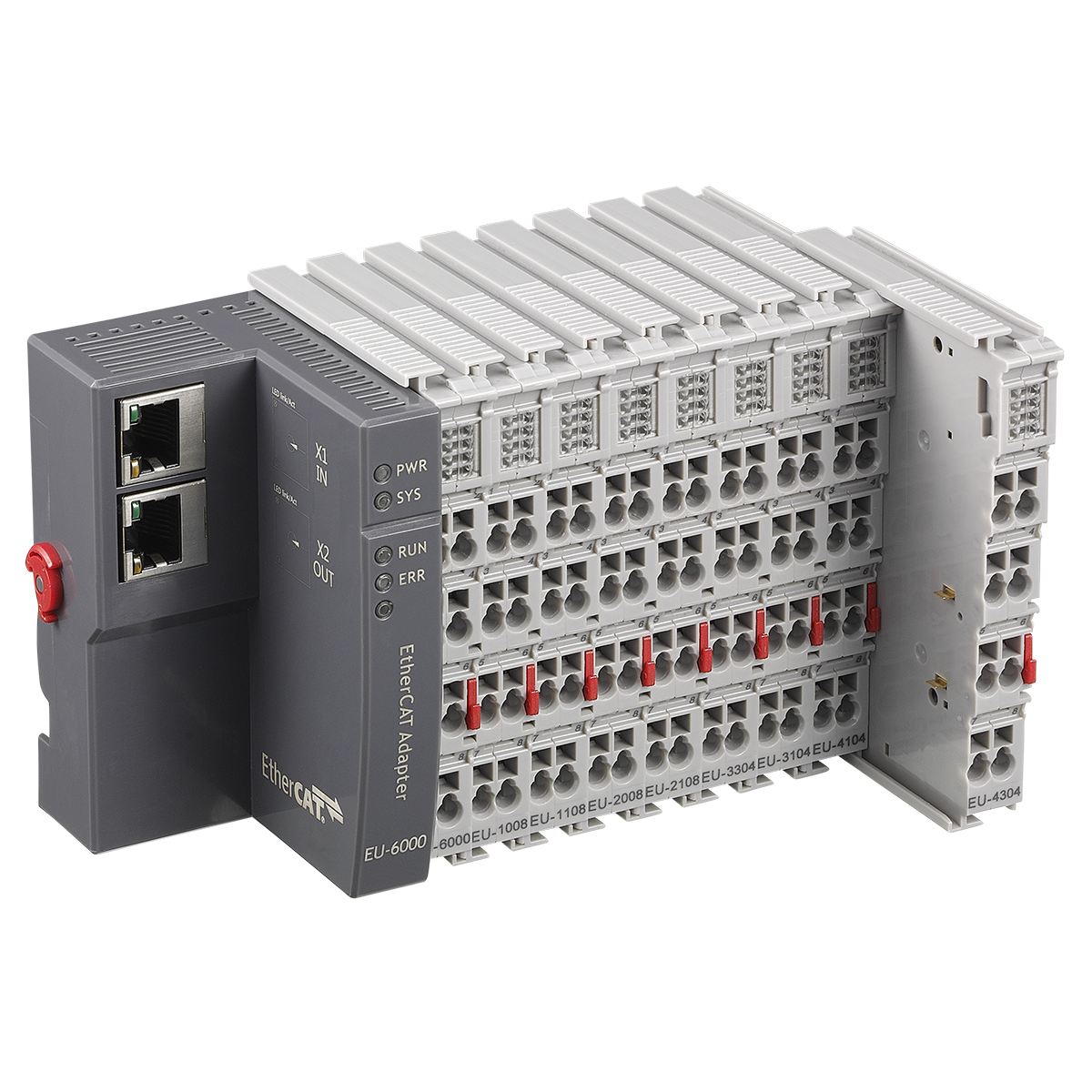

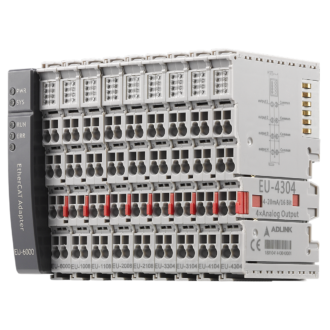

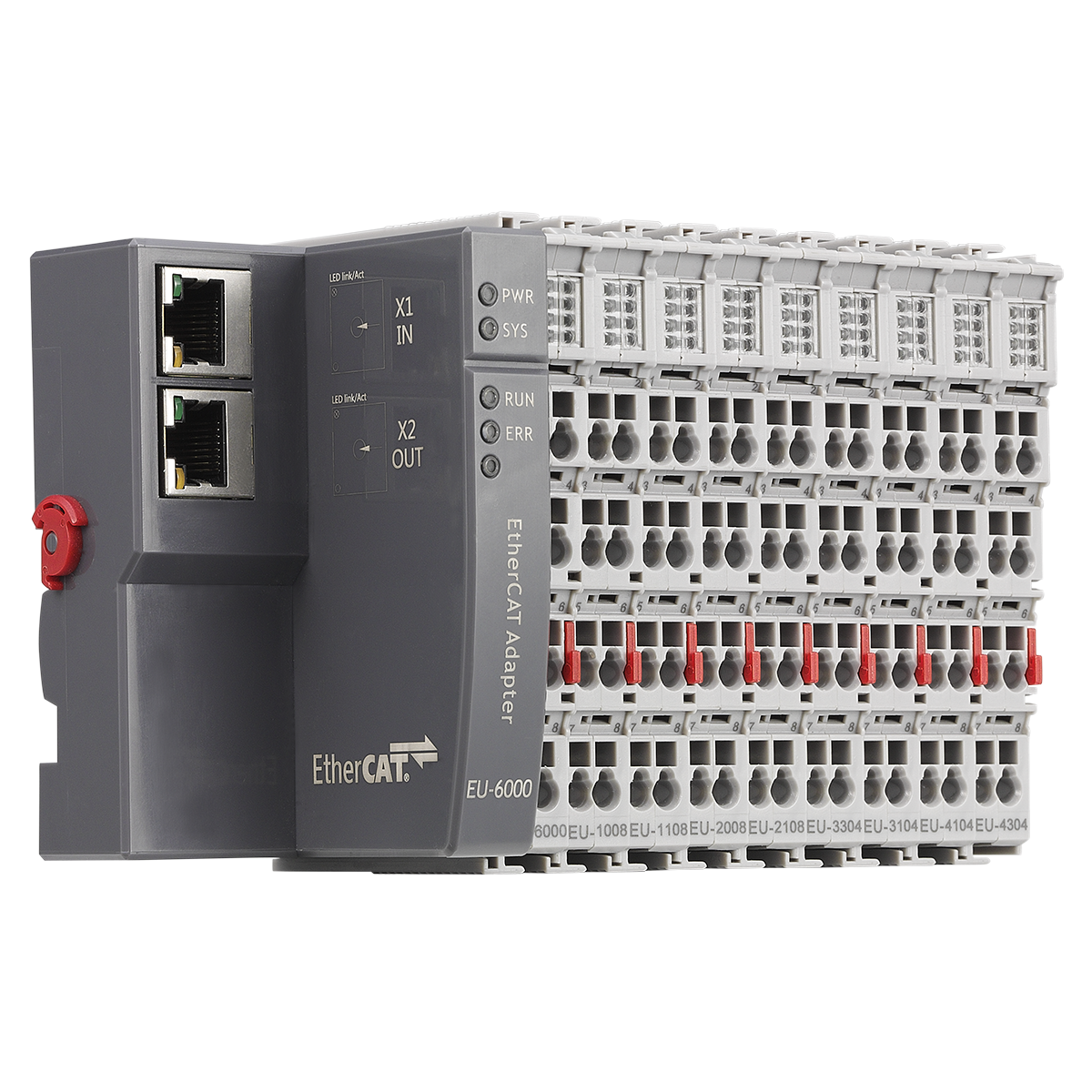

EU Series - EtherCAT Slave System

EU Series - EtherCAT Slave System
Clear
Main features
  • Compliance with EtherCAT standard
  • Optimization with ADLINK EtherCAT master (250us cycle time)
  • Comprehensive slave modules including digital I/O, analog I/O, coupler, power supply and terminal shield
  • Compliance with industrial IEC standard
  • Excellent scalability powered by modularized and slice-type design
  • Compact Size: 100mm × 69mm × 63mm (each module)
EU-6000 EtherCAT Bus Coupler
EU-1008 8-CH Sinking Digital Input EtherCAT Module
EU-1108 8-CH Sourcing Digital Input EtherCAT Module
EU-2008 8-CH Sourcing Digital Output EtherCAT Module
EU-2108 8-CH Sinking Digital Output EtherCAT Module
EU-3104 4-CH 0~10V Analog Input EtherCAT Module
EU-3304 4-CH 4~20mA Analog Input EtherCAT Module
EU-4104 4-CH 0~10V Analog Output EtherCAT Module
EU-4304 4-CH 4~20mA Analog Output EtherCAT Module
EU-0200 1A Power Supply Module
EU-0012 End Terminal Module

The ADLINK complete EtherCAT solution, from hardware to middleware to software, with every element tailored for dedicated EtherCAT functionality, includes Talos master controllers, EU & EPS slave systems, and remote monitoring and control providers. As well, ADLINK’s Softmotion one-stop control kernel delivers flexible and easy-to-use intelligent platforms for driving next-generation modern Smart Factories. ADLINK’s EU slave system brings the powerful flexibility to EtherCAT environments. State-of-the-art modular construction allows the EtherCAT slave to be configured to fulfill the needs of both small local applications and expansive distributed platforms. The EU system incorporates and controls nearly any type of I/O devices. Uniquely designed for full operability in conditions from 0°C to 55°C, the EU slave system is also fully compliant with the EN 61131-2 standard for shock and vibration and EN 61000-6 for heavy industrial EMC protection, as well as emission certificate.
