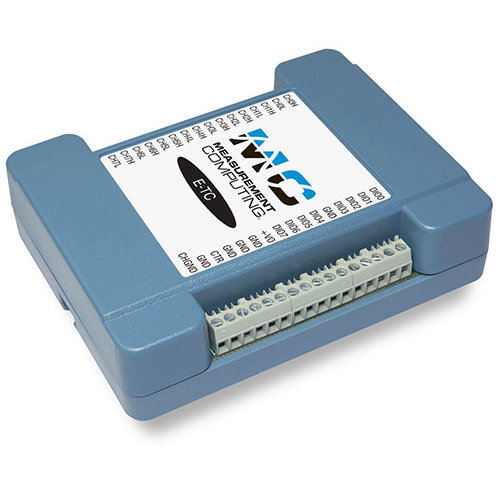

E-TC: DAQ-Ethernet MCC with 8 Temperature inputs (Thermocouple), 24-Bit
The E-TC from Measurement Computing (MCC) is a 8 Temperature inputs (Thermocouple) DAQ-Ethernet, 24-Bit. The E-TC supports a maximum sample rate of 4 S/s per channel, and TC types J, K, R, S, T, N, E, and B. TC types are software-selectable per channel. The E-TC has two high-resolution coldjunction compensation (CJC) sensors (oneper four TC inputs). The E-TC is equipped with open-thermocouple detection (OTD) for all TC input channels. With OTD enabled, users can monitor for broken or disconnected TCs.
The E-TC has eight digital I/O channels that are electrically isolated from the analog circuits. Each bit is individually configurable for input or output. Data can be transferred at rates up to 5kS/s when the device and host are connected by Ethernet to the same local network. Typical throughput is system-dependent. All DIO channels are pulled high by default to 5 V through 47 kΩ resistors with a jumper on the circuit board. Each jumper configures the digital port for pull-up or pull-down. Temperature Alarms Each digital output can be optionally configured as an alarm for each TC input.
When an alarm is enabled, the output line associated with the alarm is driven to the appropriate state determined by the alarm options and input temperature.
INCLUDED SOFTWARE
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
OPTIONAL SOFTWARE
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
