| E-1608-EU | Ethernet-based DAQ device with 8 A/D, 250 Ke/s , 2 D/A, one 32-bit counter, 8 DIO (US Plug) | 626 € |

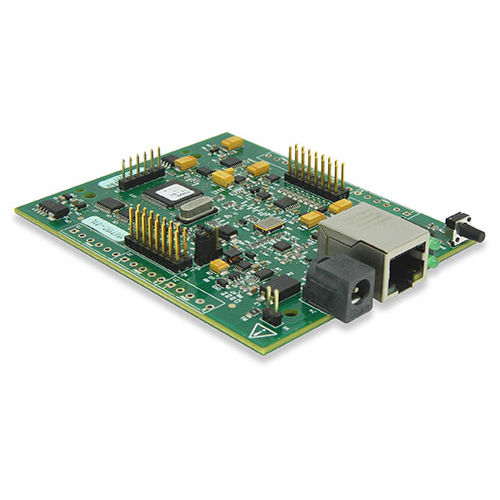

| E-1608-OEM | Ethernet-based DAQ board with 8 A/D, 250 kS/s, 2 D/A, one 32-bit counter, 8 DIO (without PSU). | 605 € |

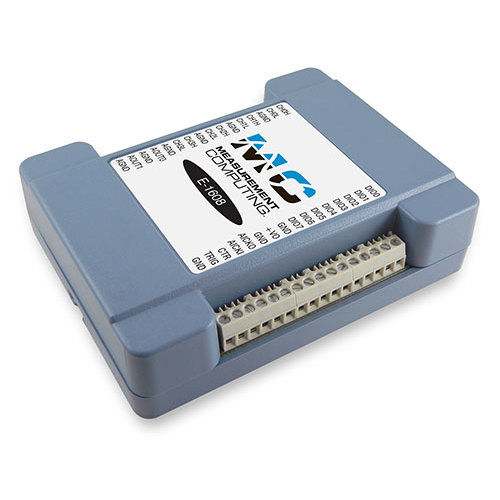

E-1608 - 16-Bit Multifunction Ethernet DAQ Device
Main features
- 16-bit high-speed Ethernet device
- Sample rates up to 250 kS/s
- 8 SE/4 DIFF analog inputs
- Two 16-bit analog outputs
- Eight individually-configurable digital I/O
- One 32-bit counter input
- Includes a built-in 10/100 BASE-T auto-negotiation, high-speed communication port
- Uses TCP/IP and UDP for network communication
- Includes CAT-6 Ethernet cable and 5 V power supply adapter
- Screw-terminal connectors
- Board-Only OEM Version Available
E-1608: DAQ-Ethernet MCC with 8 SE/4 DIFF A/D, 16-Bit, 250KS/s and 2 D/A
Measurement Computing’s (MCC) E-1608 is a DAQ-Ethernet providing 8 SE multiplexed analog inputs or 4 differential multiplexed analog inputs, 16-Bit resolution, with an input range programmable by software and per channel ± 10 V, ± 5 V, ± 2 V and ± 1 V and with a maximum sampling frequency is 250KS/s aggregate. The total acquisition rate for all channels cannot exceed 250KS/s. E-1608 also has two 16-Bit analog outputs. Both outputs can be updated simultaneously at a rate of 500 S/s per channel. The output range is fixed ± 10 V.
The E-1608 has eight TTL digital I/Os. Each digital channel is software selectable as input or output. An internal jumper allows the digital I/O to be configured in pull-up or pull-down mode. Finally, the E-1608 has a 32-Bit TTL level event counter that accepts inputs up to 10 MHz.
Included Software
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
Optional Software
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
