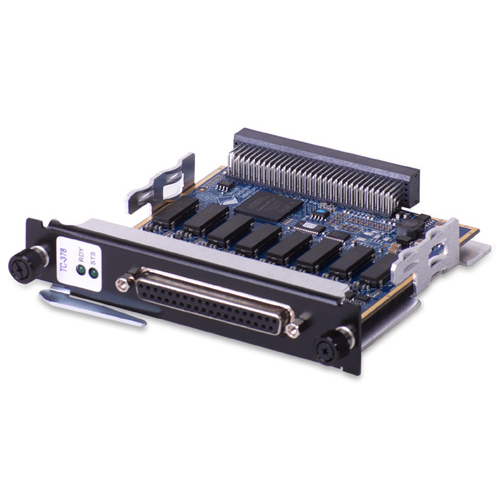

UEI card DNx-TC-378 8 independent isolated thermocouple outputs.
Technical specifications
The UEI manufacturer’s board, DNX-TC-378 is a board with 8 independent isolated Thermocouple outputs. Maximum update rate of 1 kHz per channel. The ± 100 mV output range allows all CTs to be supported. The Guardian Series diagnostic reads the voltage, current and temperature output from the board. Simulates open thermocouples. Simultaneous update of all channels.
Software and drivers
The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.
Depending on the reception station, the card references will be:
– DNA-TC-378 for Cubes
– DNR-TC-378-024 for Racks
– DNF-TC-378 for the FLATRACK
Card usable with the UEILogger.
